FRONT AUTO LEVELING SENSOR INSPECTION

id091800474000

1.  Connect three 1.5 V dry cell batteries in a series.

amxzzw00001077

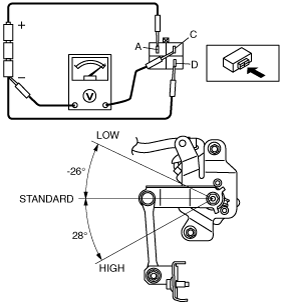

2.  Connect the positive pole of the battery to front auto leveling sensor terminal A, and the negative pole to terminal D, then apply voltage of 4.5 V between terminals A and D.

3.  Connect the tester as shown in the figure.

4.  Measure the voltage while the link is moved up and down slowly.

•  If not as indicated in the table, replace the front auto leveling sensor.

Link angle (vehicle height)	Voltage (V)
+28° (High)	3.4
0°	2.3
-26° (Low)	1.2
