REAR AUTO LEVELING SENSOR INSPECTION


id091800474100

1.  Connect three 1.5 V dry cell batteries in a series.

amxzzw00001078

2.  Connect the positive pole of the battery to rear auto leveling sensor terminal A, and the negative pole to terminal B, then apply voltage of 4.5 V between terminals A and B.

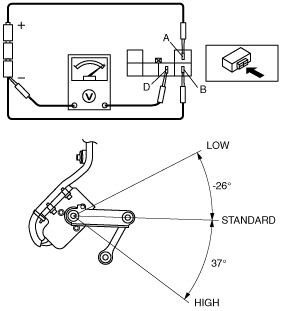

3.  Connect the tester as shown in the figure.

4.  Measure the voltage while the link is moved up and down slowly.

•  If not as indicated in the table, replace the rear auto leveling sensor.

Link angle (vehicle height)

Voltage (V)

+37° (High)
3.8
2.3
-26° (Low)
1.2
