FLASHER CONTROL MODULE REMOVAL/INSTALLATION

id091800850900

1.  Remove the battery cover.

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3.  Disconnect the connector.

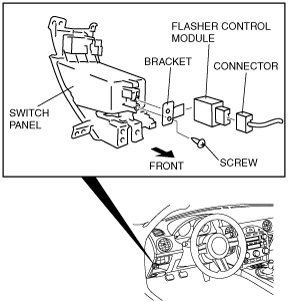

amxzzw00001093

4.  Remove the screw and then remove the flasher control module.

5.  Install in the reverse order of removal.
