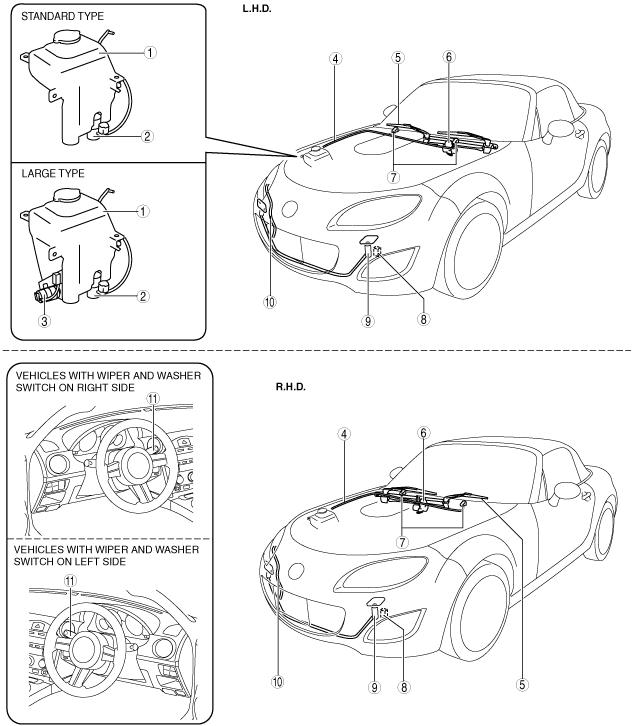

WIPER/WASHER SYSTEM LOCATION INDEX

id091900800100

amxzzw00001185

1	Washer tank (See WASHER TANK REMOVAL/INSTALLATION.)
2	Washer motor (See WASHER MOTOR REMOVAL/INSTALLATION.) (See WASHER MOTOR INSPECTION.)
3	Headlight cleaner motor (See HEADLIGHT CLEANER MOTOR REMOVAL/INSTALLATION.) (See HEADLIGHT CLEANER MOTOR INSPECTION.)
4	Washer hose (See WASHER HOSE REMOVAL/INSTALLATION.)
5	Wiper arm and blade (See WIPER ARM AND BLADE REMOVAL/INSTALLATION.) (See WIPER ARM AND BLADE ADJUSTMENT.)
6	Wiper motor (See WIPER MOTOR REMOVAL/INSTALLATION.) (See WIPER MOTOR DISASSEMBLY/ASSEMBLY.) (See WIPER MOTOR INSPECTION.)
7	Washer nozzle (See WASHER NOZZLE REMOVAL/INSTALLATION.)
8	Headlight cleaner relay (See HEADLIGHT CLEANER RELAY REMOVAL/INSTALLATION.) (See HEADLIGHT CLEANER RELAY INSPECTION.)
9	Headlight cleaner actuator (See HEADLIGHT CLEANER ACTUATOR REMOVAL/INSTALLATION.)
10	Headlight cleaner hose (See HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION.)
11	Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.) (See WIPER AND WASHER SWITCH INSPECTION.)
