AUDIO CONTROL SWITCH INSPECTION

id092000800300

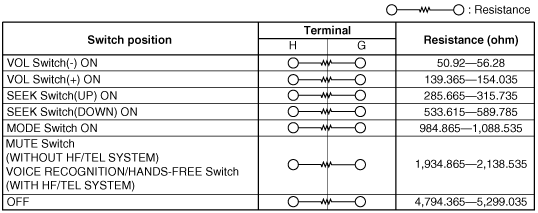

1.  Verify the resistance and continuity between the audio control switch terminals.

amxzzw00002181

•  If the resistance and continuity are not as indicated in the tables, replace the audio control switch.

amxzzw00002297

2.  Verify that the LED illuminates.

•  If the LED does not illuminate, replace the audio control switch.
