REAR SPEAKER INSPECTION

id092000802500

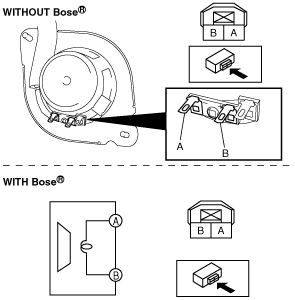

1. Inspect for resistance between the rear speaker terminals using an ohmmeter.

amxzzw00002184

• If the resistance is not within the specification, replace the rear speaker.

Resistance

Without Bose^®: 8 ohms

With Bose^®: 3.6 ohms
