SEAT BELT WARNING ALARM CONSTRUCTION/OPERATION

id092200101800

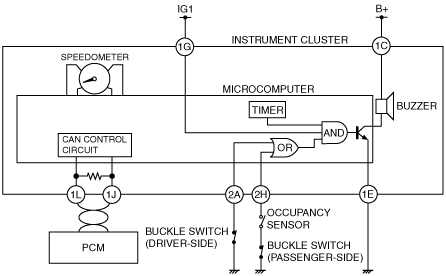

System Wiring Diagram

amxzzn00000628

Operation

•  If all of the following conditions are met, a beeper sounds intermittently as shown in the table.
―  The seat belt (driver side or passenger side) is unfastened (driver side: buckle switch is on, passenger side: buckle switch is on and occupancy sensor detects passenger).
―  Initialization warning: Vehicle speed is approx. 15—20 km/h {9.4—12.0 mph} or more.
―  Recurrent warning: Vehicle speed is approx. 15—20 km/h {9.4—12.0 mph} or more.

Initialization warning

Initial warning
6—8 s
Intermediate warning
22—24 s
Main warning
92—94 s

Recurrent warning

Initial warning
6—8 s
Intermediate warning
7—9 s
Main warning
92—94 s
