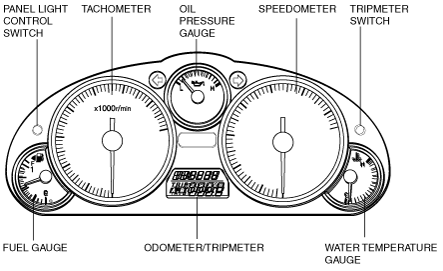

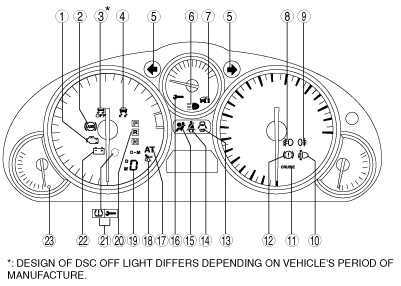

1

MIL

PCM

×

Illuminates if a malfunction occurs in the engine control system and the automatic transmission control system.

(See ON-BOARD DIAGNOSTIC SYSTEM MALFUNCTION DISPLAY FUNCTION [L8, LF].)

—

2

ABS warning light

×

If the ABS/DSC system is malfunctioning, the ABS warning light remains illuminated.

—

3

DSC OFF light

DSC HU/CM

×

With DSC

4

DSC indicator light

DSC HU/CM

×

With DSC

5

Turn indicator light

Flasher control module

—

—

6

High-beam indicator light

Headlight (HI)

—

When the headlight (high-beam) illuminates, the high-beam indicator light illuminates.

—

7

Security light

Keyless control module

×

Illuminates or flashes when immobilizer system has malfunction.

—

8

Front fog indicator light

Front fog light relay

—

When the front fog light illuminates, the front fog indicator light illuminates.

With front fog light

9

Rear fog indicator light

Rear fog light relay

—

When the rear fog light illuminates, the rear fog light indicator light illuminates.

With rear fog light

10

Headlight auto leveling warning light

Auto leveling control module

—

The headlight auto leveling system warning light illuminates if a malfunction in the auto leveling system is detected.

With headlight auto leveling system

11

Cruise main indicator light

PCM

×

Illuminates if the cruise control system is in control status.

(See CRUISE CONTROL SYSTEM OUTLINE [L8, LF].)

With cruise control system

Cruise set indicator light

12

Brake system warning light

PCM

×

Brake system warning light. illumination request

(See DRIVE-BY-WIRE CONTROL OPERATION [L8, LF].)

—

×

If the ABS/DSC system is malfunctioning, the brake system warning light remains illuminated.

—

—

—

13

Door ajar warning light

Door switches

—

Illuminates when door or trunk lid is open.

—

14

Seat belt warning light

Buckle switch

—

When the driver’s seat belt is not fastened, the seat belt warning light illuminates.

—

15

Air bag system warning light

SAS control module

—

Illuminates or flashes when SRS air bag system has malfunction.

—

16

Malfunction warning light

PCM

×

Malfunction warning light illumination request.

(See DRIVE-BY-WIRE CONTROL OPERATION [L8, LF].)

With malfunction warning light

17

AT warning light

TCM

×

The AT warning light illuminates to alert the driver of a malfunction in the automatic transmission.

(See AT WARNING LIGHT FUNCTION [SJ6A-EL].)

AT

18

Active bonnet warning light

Active bonnet control module

×

If the active bonnet system is malfunctioning, the active bonnet warning light remains illuminated.

(See ACTIVE BONNET WARNING ALARM CONSTRUCTION/OPERATION.)

With active bonnet system

19

Gear position indicator light

TCM

×

The gear position indicator light displays the gear position when in the manual mode.

(See SELECTOR INDICATOR LIGHT FUNCTION [SJ6A-EL].)

AT

20

Selector indicator light

TCM

×

The selector indicator light displays the selector lever position.

(See SELECTOR INDICATOR LIGHT FUNCTION [SJ6A-EL].)

AT

21

Tire pressure monitoring system (TPMS) warning light

Keyless control module

×

If the TPMS system is malfunctioning or the tire pressure is abnormal, the TPMS warning light remains illuminated.

With TPMS

Malfunction warning light

PCM

×

Malfunction warning light illumination request.

(See DRIVE-BY-WIRE CONTROL OPERATION [L8, LF].)

With malfunction warning light

22

Generator warning light

PCM

×

Illuminates if the generator output is not normal.

(See GENERATOR CONSTRUCTION [L8, LF].)

—

23

Fuel-level warning light

Fuel gauge sender unit

—

When the remaining fuel amount in the fuel tank is low, the fuel-level warning light illuminates.

—
