OCCUPANCY SENSOR INSPECTION

id092200801100

1.  Turn the ignition switch to LOCK position.

2.  Remove the battery cover.

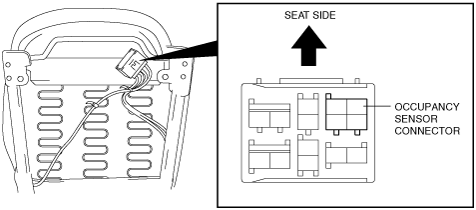

3.  Disconnect the negative battery cable and wait 1 min or more.

4.  Remove the passenger-side seat. (See SEAT REMOVAL/INSTALLATION.)

5.  Disconnect the occupancy sensor connector.

amxzzw00001754

6.  Verify that the continuity between the occupancy sensor terminals is as indicated in the table.

amxzzw00001755

•  If not as indicated in the table, replace the occupancy sensor.

amxzzw00001756
