BODY COMPONENTS CONSTRUCTION [CONSTRUCTION]

id098007739700


European (L.H.D. U.K.), General (L.H.D.) specs.

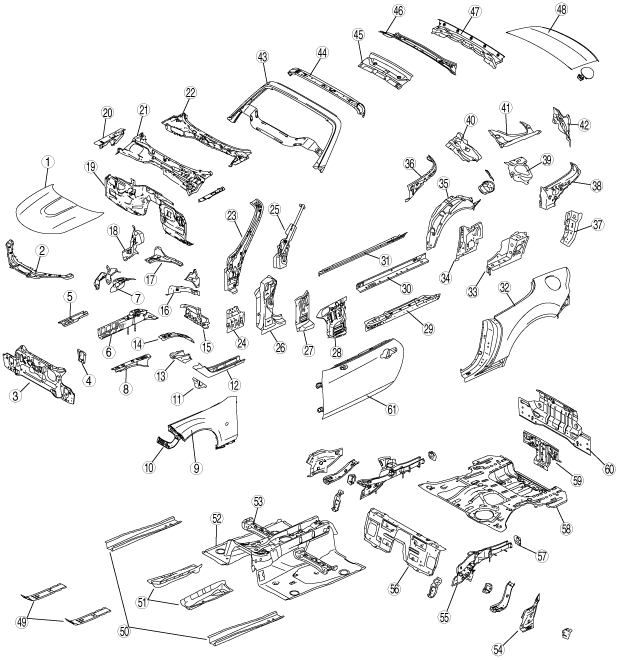

amxuub00000001

x:Applied
-:Not applied

No.

Part Name

Ultra high- tension steel

High- tension steel

Rust proof steel

Thickness

(mm)

{in}
1
Bonnet*
-
-
-
0.95
{0.037}
2
Shroud upper panel
-
-
x
0.70
{0.028}
3
Shroud lower panel
-
-
x
0.70
{0.028}
4
Front bumper bracket
-
x
-
2.00
{0.079}
5
Front side frame (outer)
x
-
x
1.00
{0.039}
6
Front side frame
x
-
x
1.60
{0.063}
7
Suspension housing
-
-
x
2.60
{0.102}
8
Apron reinforcement (upper)
-
x
x
0.90
{0.035}
9
Front fender panel
-
-
x
0.75
{0.030}
10
Front fender bracket
-
-
x
1.00
{0.039}
11
Lower arm bracket
-
-
x
2.30
{0.091}
12
Front frame rear
-
x
x
1.40
{0.055}
13
Front frame rear (upper)
-
x
x
1.40
{0.055}
14
Wheel apron panel
-
-
x
0.90
{0.035}
15
Torque box
-
-
x
1.20
{0.047}
16
Front frame reinforcement (outer)
-
x
x
1.40
{0.055}
17
Front frame reinforcement (upper)
x
-
x
1.80
{0.071}
18
Front frame reinforcement (inner)
-
x
x
1.40
{0.055}
19
Dash lower panel
-
-
x
0.75
{0.030}
20
Cowl upper plate
-
x
x
1.00
{0.039}
21
Dash upper panel
-
-
x
0.65
{0.026}
22
Cowl panel
-
-
x
0.65
{0.026}
23
Front pillar (inner)
upper
-
x
-
2.00
{0.079}
lower
x
-
-
2.00
{0.079}
24
Side sill reinforcement (front)
x
-
x
1.60
{0.063}
25
Front pillar reinforcement
-
x
-
2.00
{0.079}
26
Hinge pillar (outer)
-
x
x
1.40
{0.055}
27
Cowl side panel
-
x
x
1.20
{0.047}
28
Cowl side reinforcement
-
x
x
1.00
{0.039}
29
Side sill reinforcement
-
x
x
1.80
{0.071}
30
Side sill (inner)
x
-
-
2.00
{0.079}
31
Side sill reinforcement (upper)
x
-
x
1.20
{0.047}
32
Rear fender panel
-
-
x
0.80
{0.031}
33
Side sill gusset
-
x
-
1.80
{0.071}
34
Center pillar (inner)
-
-
-
1.20
{0.047}
35
Wheel house (inner)
-
-
x
0.70
{0.028}
36
Side brace
Convertible Top
-
-
-
0.70
{0.028}
Power Retractable Hardtop
-
-
-
0.80
{0.031}
37
Striker reinforcement
-
-
-
1.40
{0.055}
38
End plate
-
-
-
0.70
{0.028}
39
Rear pillar (inner)
-
-
-
0.65
{0.026}
40
Package gusset
Convertible Top
-
-
-
0.80
{0.031}
Power Retractable Hardtop
-
-
-
1.00
{0.039}
41
Rear fender rain rail
-
-
x
0.90
{0.035}
42
Corner plate
-
-
x
0.80
{0.031}
43
Front header (upper)
-
-
x
1.00
{0.039}
44
Header reinforcement
-
-
-
1.40
{0.055}
45
Package tray
Convertible Top
-
-
-
0.80
{0.031}
Power Retractable Hardtop
-
-
-
1.00
{0.039}
46
Rear deck panel
-
-
x
0.80
{0.031}
47
Rear deck
-
-
-
0.70
{0.028}
48
Trunk lid panel
Convertible Top*
-
-
-
0.95
{0.037}
Power Retractable Hardtop
-
x
x
0.65
{0.026}
49
Floor reinforcement
x
-
-
1.00
{0.039}
50
Front B frame
x
-
x
1.60
{0.063}
51
Member bracket
-
x
x
0.80
{0.031}
52
Front floor pan
-
-
x
0.65
{0.026}
53
Crossmember No.2
-
-
-
1.40
{0.055}
54
Rear side frame
-
x
x
1.20
{0.047}
55
Rear side frame
x
-
x
1.40
{0.055}
56
Center floor pan
-
x
x
0.80
{0.031}
57
Rear bumper bracket
-
x
x
1.20
{0.047}
58
Rear floor pan
-
-
x
0.65
{0.026}
59
Rear end member
-
-
-
0.65
{0.026}
60
Rear end panel
-
-
x
0.60
{0.024}
61
Door panel
-
x
x
0.65
{0.026}

(*)  :Material is aluminum.

Australian specs.

amxuub00000001

x:Applied
-:Not applied

No.

Part Name

Ultra high- tension steel

High- tension steel

Rust proof steel

Thickness

(mm)

{in}
1
Bonnet*
-
-
-
0.95
{0.037}
2
Shroud upper panel
-
-
x
0.70
{0.028}
3
Shroud lower panel
-
-
x
0.70
{0.028}
4
Front bumper bracket
-
x
-
2.00
{0.079}
5
Front side frame (outer)
x
-
x
1.00
{0.039}
6
Front side frame
x
-
x
1.60
{0.063}
7
Suspension housing
-
-
x
2.60
{0.102}
8
Apron reinforcement (upper)
-
x
x
0.90
{0.035}
9
Front fender panel
-
-
x
0.75
{0.030}
10
Front fender bracket
-
-
x
1.00
{0.039}
11
Lower arm bracket
-
-
x
2.30
{0.091}
12
Front frame rear
-
x
x
1.40
{0.055}
13
Front frame rear (upper)
-
x
x
1.40
{0.055}
14
Wheel apron panel
-
-
x
0.90
{0.035}
15
Torque box
-
-
x
1.20
{0.047}
16
Front frame reinforcement (outer)
-
x
x
1.40
{0.055}
17
Front frame reinforcement (upper)
x
-
x
1.80
{0.071}
18
Front frame reinforcement (inner)
-
x
x
1.40
{0.055}
19
Dash lower panel
-
-
-
0.75
{0.030}
20
Cowl upper plate
-
x
x
1.00
{0.039}
21
Dash upper panel
-
-
x
0.65
{0.026}
22
Cowl panel
-
-
x
0.65
{0.026}
23
Front pillar (inner)
upper
-
x
-
2.00
{0.079}
lower
x
-
-
2.00
{0.079}
24
Side sill reinforcement (front)
x
-
x
1.60
{0.063}
25
Front pillar reinforcement
-
x
-
2.00
{0.079}
26
Hinge pillar (outer)
-
x
x
1.40
{0.055}
27
Cowl side panel
-
x
x
1.20
{0.047}
28
Cowl side reinforcement
-
x
x
1.00
{0.039}
29
Side sill reinforcement
-
x
x
1.80
{0.071}
30
Side sill (inner)
x
-
-
2.00
{0.079}
31
Side sill reinforcement (upper)
x
-
x
1.20
{0.047}
32
Rear fender panel
-
-
x
0.80
{0.031}
33
Side sill gusset
-
x
-
1.80
{0.071}
34
Center pillar (inner)
-
-
-
1.20
{0.047}
35
Wheel house (inner)
-
-
x
0.70
{0.028}
36
Side brace
Convertible Top
-
-
-
0.70
{0.028}
Power Retractable Hardtop
-
-
-
0.80
{0.031}
37
Striker reinforcement
-
-
-
1.40
{0.055}
38
End plate
-
-
-
0.70
{0.028}
39
Rear pillar (inner)
-
-
-
0.65
{0.026}
40
Package gusset
Convertible Top
-
-
-
0.80
{0.031}
Power Retractable Hardtop
-
-
-
1.00
{0.039}
41
Rear fender rain rail
-
-
x
0.90
{0.035}
42
Corner plate
-
-
x
0.80
{0.031}
43
Front header (upper)
-
-
x
1.00
{0.039}
44
Header reinforcement
-
-
-
1.40
{0.055}
45
Package tray
Convertible Top
-
-
-
0.80
{0.031}
Power Retractable Hardtop
-
-
-
1.00
{0.039}
46
Rear deck panel
-
-
x
0.80
{0.031}
47
Rear deck
-
-
-
0.70
{0.028}
48
Trunk lid panel
Convertible Top*
-
-
-
0.95
{0.037}
Power Retractable Hardtop
-
x
x
0.65
{0.026}
49
Floor reinforcement
x
-
-
1.00
{0.039}
50
Front B frame
x
-
x
1.60
{0.063}
51
Member bracket
-
x
x
0.80
{0.031}
52
Front floor pan
-
-
-
0.65
{0.026}
53
Crossmember No.2
-
-
-
1.40
{0.055}
54
Rear side frame
-
x
x
1.20
{0.047}
55
Rear side frame
x
-
x
1.40
{0.055}
56
Center floor pan
-
x
-
0.80
{0.031}
57
Rear bumper bracket
-
x
x
1.20
{0.047}
58
Rear floor pan
-
-
-
0.65
{0.026}
59
Rear end member
-
-
-
0.65
{0.026}
60
Rear end panel
-
-
x
0.60
{0.024}
61
Door panel
-
x
x
0.65
{0.026}

(*)  :Material is aluminum.
