FRONT FRAME COMPONENT (FRONT) REMOVAL [PANEL REPLACEMENT]

id098008606300

1.  Drill the 2 locations indicated by (A).

Note

•  To prevent damage to the front side frame rear reinforcement, grind it using a belt grinder from the front side.

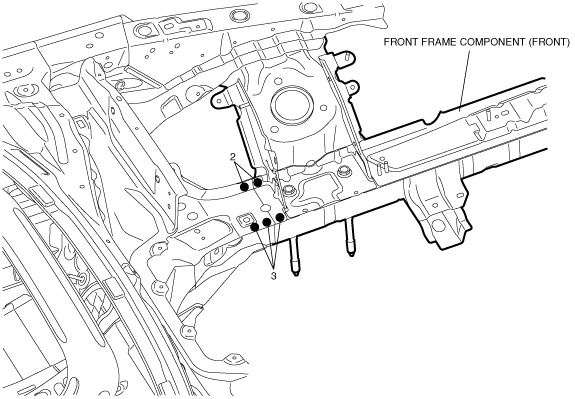

2.  Remove the front frame component (front).

d5u0980b140

d5u0980b141
