SIDE SILL REINFORCEMENT REMOVAL [PANEL REPLACEMENT]

id098008609200

Caution

•  The side sill reinforcement removal procedure is based on the condition that the cowl side panel and the hinge pillar (outer) and the rear fender panel have been removed.

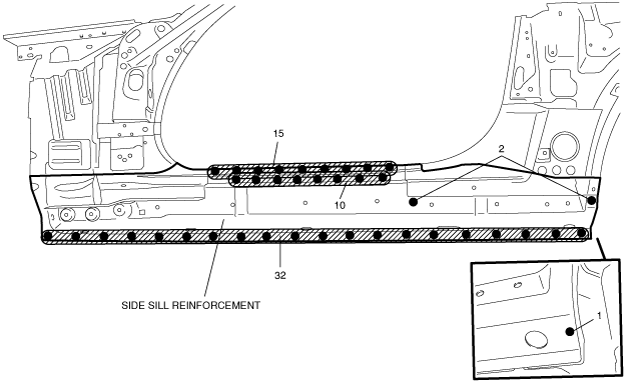

1.  Remove the side sill reinforcement.

d5u0980b089
