FRONT HEADER REMOVAL [PANEL REPLACEMENT]

id098008612700

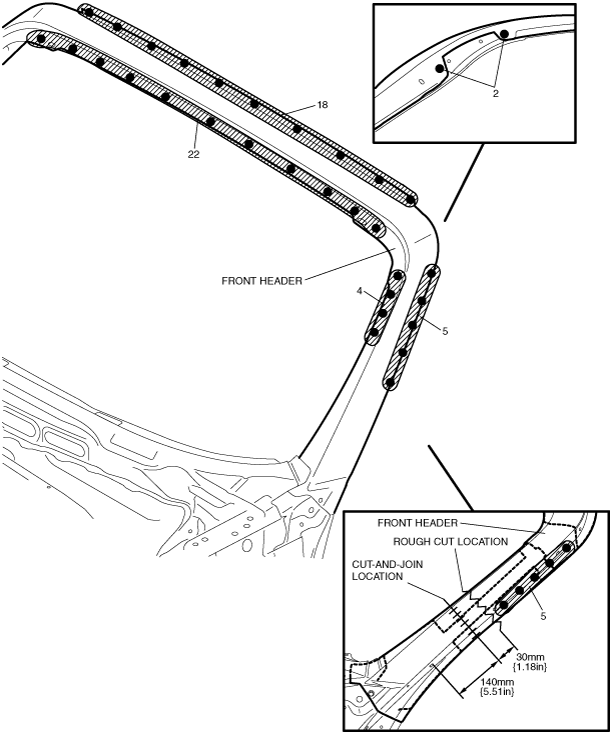

1.  Rough cut and remove the damaged part of the front header.

Caution

•  During rough cutting, be careful not to damage the front pillar reinforcement indicated by dotted lines in the figure.

d5u0980b117
