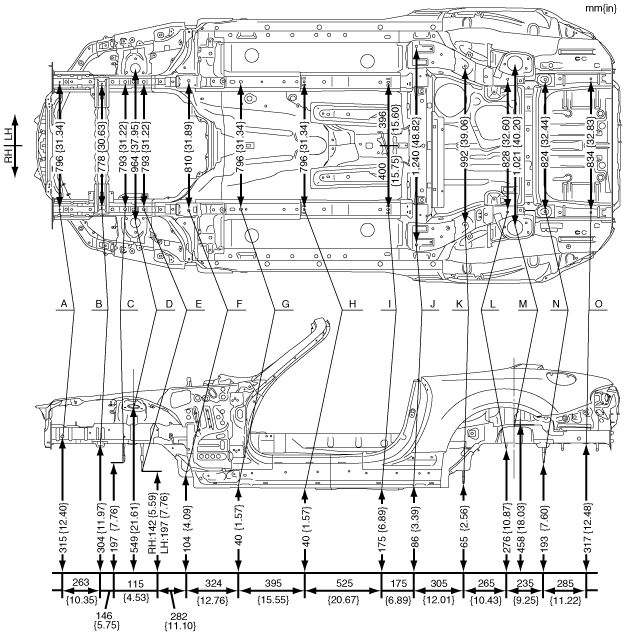

UNDERBODY FLAT-PLANE DIMENSIONS [DIMENSIONS]

id098010740400

d5u0980b001

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Front side frame datum hole	ø7 {0.28}
B	Crossmember No.1 datum hole	ø7 {0.28}
C	Engine mounting bolt	M14 {0.55}
D	Front suspension mounting block	ø64 {2.52}
E	Engine mounting bolt	M14 {0.55}
F	Front frame rear datum hole	ø16 {0.63}
G	Front frame rear datum slot	ø16 x 20
		{0.63 x 0.79}
H	Front B frame datum hole	ø12 {0.47}
I	Front B frame datum slot	ø12 x 18
		{0.47 x 0.71}
J	Rear side frame datum hole	ø16 {0.63}
K	Rear crossmember mounting bolt	M14 {0.55}
L	Rear crossmember mounting bolt	M14 {0.55}
M	Rear suspension mounting block	ø97 {3.82}
N	Rear crossmember mounting bolt	M14 {0.55}
O	Rear side frame datum slot	ø16 x 20
		{0.63 x 0.79}
