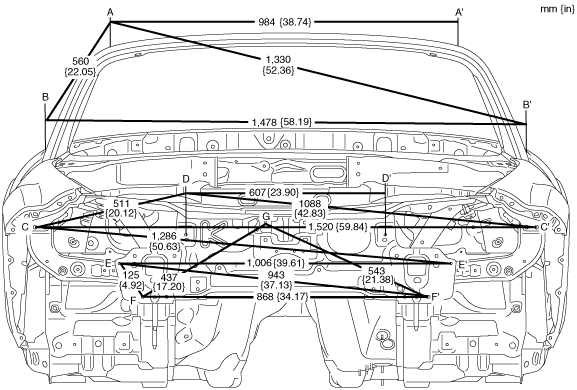

FRONT BODY STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]
id098010740600
amxzzb00000015
|
amxzzb00000016
|
|

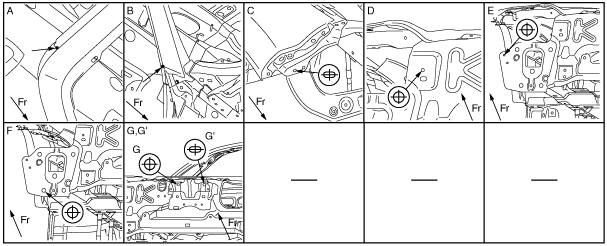

Point symbol |
Designation |
Hole diameter or bolt or nut size mm {in} |
|---|---|---|
|
A
|
Front header notch
|
-
|
|
B
|
Front header projection location
|
-
|
|
C
|
Front fender installation slot
|
ø10 x 12
|
|
{0.39 x 0.47}
|
||
|
D
|
Front combination light installation hole
|
ø7 {0.28}
|
|
E
|
Front combination light installation hole
|
ø7 {0.28}
|
|
F
|
Front bumper reinforcement installation hole
|
ø14 {0.55}
|
|
G
|
Bonnet bracket datum hole
|
ø10 {0.39}
|
|
G’
|
Bonnet bracket datum slot
|
ø10 x 14
|
|
{0.39 x 0.55}
|
