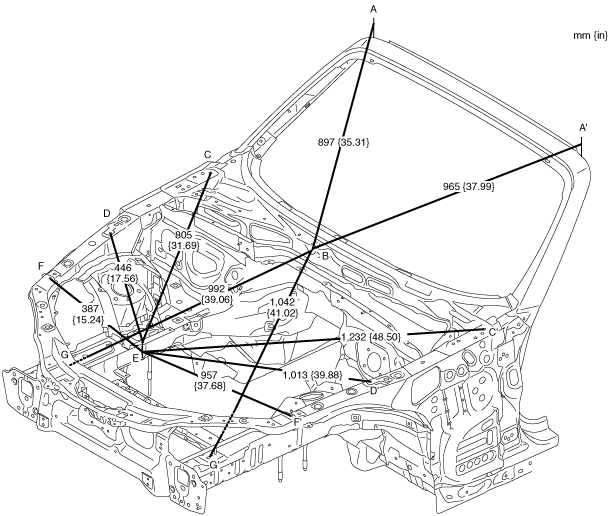

FRONT BODY STRAIGHT-LINE DIMENSIONS (3) [DIMENSIONS]
id098010740800
amxzzb00000019
|
amxzzb00000020
|
|

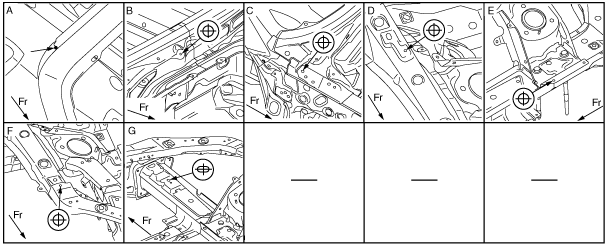

Point symbol |
Designation |
Hole diameter or bolt or nut size mm {in} |
|---|---|---|
|
A
|
Front header notch
|
-
|
|
B
|
Wiper installation hole
|
ø7 {0.28}
|
|
C
|
Bonnet hinge installation hole
|
ø12 {0.47}
|
|
D
|
Front fender installation hole
|
ø7 {0.28}
|
|
E
|
Suspension mounting reinforcement datum hole
|
ø8.2 {0.32}
|
|
F
|
Front fender installation hole
|
ø10 {0.39}
|
|
G
|
Front side frame outer datum slot
|
ø10 x 14
|
|
{0.39 x 0.55}
|
