ROOM STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]
id098010743300
d5u0980b012
|
d5u0980b013
|

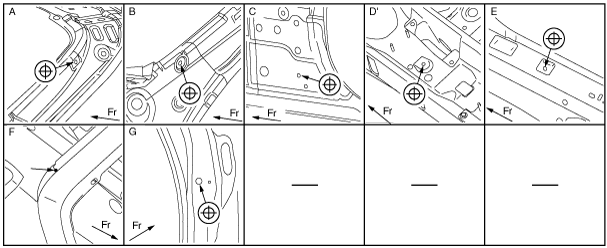

Point symbol |
Designation |
Hole diameter or bolt or nut size mm {in} |
---|---|---|
A
|
Front haeder inner datum hole
|
ø7 {0.28}
|
B
|
Hinge pillar inner datum hole
|
ø7 {0.28}
|
C
|
Hinge pillar inner datum hole
|
ø5.4 {0.21}
|
D’
|
Console installation hole
|
ø3.8 {0.15}
|
E
|
Side sill inner datum hole
|
ø7 {0.28}
|
F
|
Front header notch
|
-
|
G
|
Checker pin installation hole
|
ø10 {0.39}
|
