ROOM STRAIGHT-LINE DIMENSIONS (2) [DIMENSIONS]

id098010743400

amxzzb00000024

amxzzb00000025

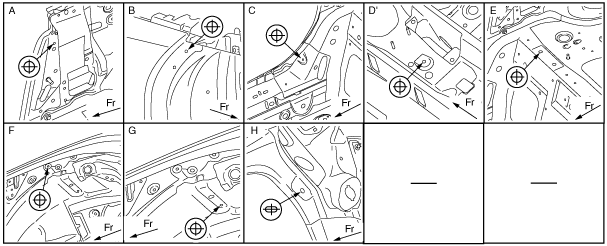

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

Center pillar inner datum hole

ø14 {0.55}

B

Weather strip datum hole

ø5.2 {0.20}

C

Side sill inner rear datum hole

ø7 {0.28}

D’

Console installation hole

ø3.8 {0.15}

E

Center floor pan datum hole

ø12 {0.47}

F

Side brace datum hole

ø7 {0.28}

G

Wheel house inner datum hole

ø10 {0.39}

H

Rear fender rein rail datum slot

ø12 x 7.2 {0.47x0.28}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Center pillar inner datum hole	ø14 {0.55}
B	Weather strip datum hole	ø5.2 {0.20}
C	Side sill inner rear datum hole	ø7 {0.28}
D’	Console installation hole	ø3.8 {0.15}
E	Center floor pan datum hole	ø12 {0.47}
F	Side brace datum hole	ø7 {0.28}
G	Wheel house inner datum hole	ø10 {0.39}
H	Rear fender rein rail datum slot	ø12 x 7.2 {0.47x0.28}
