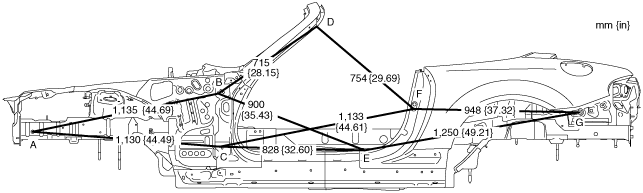

CABIN SIDE FRAME STRAIGHT-LINE DIMENSIONS [DIMENSIONS]

id098010743600

d5u0980b010

d5u0980b011

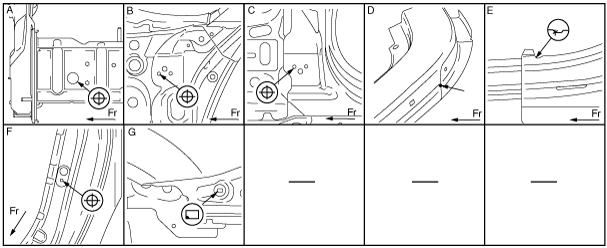

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

Front side frame datum hole

ø20 {0.79}

B

Door hinge installation hole

ø12 {0.47}

C

Door hinge installation hole

ø12 {0.47}

D

Front header notch

-

E

Rear pillar notch

-

F

Door switch installation hole

ø7.2 {0.28}

G

Rear fender panel standard square hole

8 x 10

{0.31 x 0.39}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Front side frame datum hole	ø20 {0.79}
B	Door hinge installation hole	ø12 {0.47}
C	Door hinge installation hole	ø12 {0.47}
D	Front header notch	-
E	Rear pillar notch	-
F	Door switch installation hole	ø7.2 {0.28}
G	Rear fender panel standard square hole	8 x 10
G	Rear fender panel standard square hole	{0.31 x 0.39}
