UNDERBODY FRONT STRAIGHT-LINE DIMENSIONS [DIMENSIONS]

id098010748000

• The following figure is a bottom view.

d5u0980b020

d5u0980b021

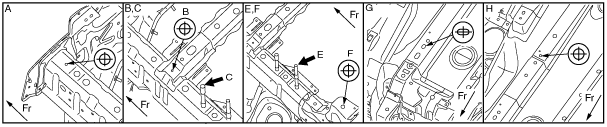

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

Front side frame datum hole

ø7 {0.28}

B

Crossmember No.1 datum hole

ø7 {0.28}

C

Engine mounting bolt

M14 {0.55}

E

Engine mounting bolt

M14 {0.55}

F

Front frame rear datum hole

ø16 {0.63}

G

Front frame rear datum slot

ø16 x 20

{0.63 x 0.79}

H

Front B frame datum hole

ø12 {0.47}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Front side frame datum hole	ø7 {0.28}
B	Crossmember No.1 datum hole	ø7 {0.28}
C	Engine mounting bolt	M14 {0.55}
E	Engine mounting bolt	M14 {0.55}
F	Front frame rear datum hole	ø16 {0.63}
G	Front frame rear datum slot	ø16 x 20
G	Front frame rear datum slot	{0.63 x 0.79}
H	Front B frame datum hole	ø12 {0.47}
