UNDERBODY REAR STRAIGHT-LINE DIMENSIONS [DIMENSIONS]

id098010748100

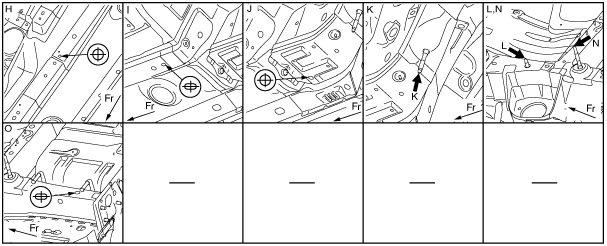

• The following figure is a bottom view.

d5u0980b022

d5u0980b023

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

H

Front B frame datum hole

ø12 {0.47}

I

Front B frame datum slot

ø12 x 18

{0.47 x 0.71}

J

Rear side frame datum hole

ø16 {0.63}

K

Rear crossmember mounting bolt

M14 {0.55}

L

Rear crossmember mounting bolt

M14 {0.55}

N

Rear crossmember mounting bolt

M14 {0.55}

O

Rear side frame datum hole

ø16 x 20

{0.63 x 0.79}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
H	Front B frame datum hole	ø12 {0.47}
I	Front B frame datum slot	ø12 x 18
I	Front B frame datum slot	{0.47 x 0.71}
J	Rear side frame datum hole	ø16 {0.63}
K	Rear crossmember mounting bolt	M14 {0.55}
L	Rear crossmember mounting bolt	M14 {0.55}
N	Rear crossmember mounting bolt	M14 {0.55}
O	Rear side frame datum hole	ø16 x 20
O	Rear side frame datum hole	{0.63 x 0.79}
