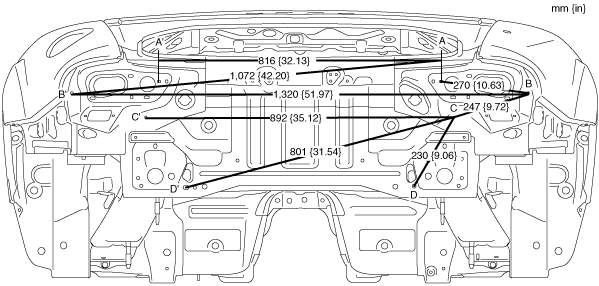

REAR BODY STRAIGHT-LINE DIMENSIONS [DIMENSIONS]

id098010748200

d5u0980b018

d5u0980b019

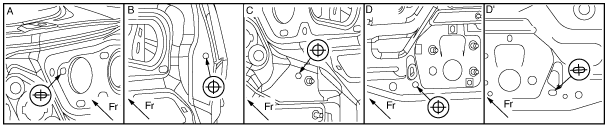

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

Corner plate standard slot

ø8 x 12

{0.31 x 0.47}

B

Rear fender standard hole

ø8 {0.31}

C

Corner plate standard hole

ø7 {0.28}

D

Rear end panel datum hole

ø12 {0.47}

D’

Rear end panel datum slot

ø12 x 6

{0.47 x 0.24}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Corner plate standard slot	ø8 x 12
A	Corner plate standard slot	{0.31 x 0.47}
B	Rear fender standard hole	ø8 {0.31}
C	Corner plate standard hole	ø7 {0.28}
D	Rear end panel datum hole	ø12 {0.47}
D’	Rear end panel datum slot	ø12 x 6
D’	Rear end panel datum slot	{0.47 x 0.24}
