OIL PUMP DISASSEMBLY
id051300260300

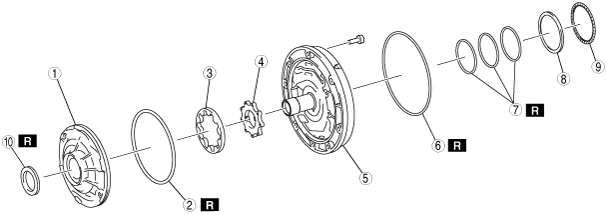

Components
bsj6za00000537
|
|
1
|
Pump housing
|
|
2
|
O-ring
|
|
3
|
Outer oil pump gear
|
|
4
|
Inner oil pump gear
|
|
5
|
Oil pump shaft
|
|
6
|
O-ring
|
|
7
|
Seal ring
|
|
8
|
Bearing race
|
|
9
|
Thrust needle bearing
|
|
10
|
Oil seal
|
Disassembly
1. Remove the O-ring from the oil pump component.
bsj6za00000602
|
2. Remove the seal ring from the oil pump shaft.
bsj6za00000603
|
3. Put an installation mark on the pump housing and oil pump shaft.
bsj6za00000778
|
4. Remove the screw from the oil pump.
bsj6za00000604
|
5. Remove the oil pump shaft from the pump housing.
bsj6za00000605
|
6. Remove the O-ring from the pump housing.
bsj6za00000577
|
7. Remove the inner oil pump gear and outer oil pump gear from the pump housing.
bsj6za00000606
|
8. Using a flathead screwdriver, remove the oil seal from the pump housing.
bsj6za00000122
|
