PLANETARY GEAR COMPONENT ASSEMBLY
id051300261400

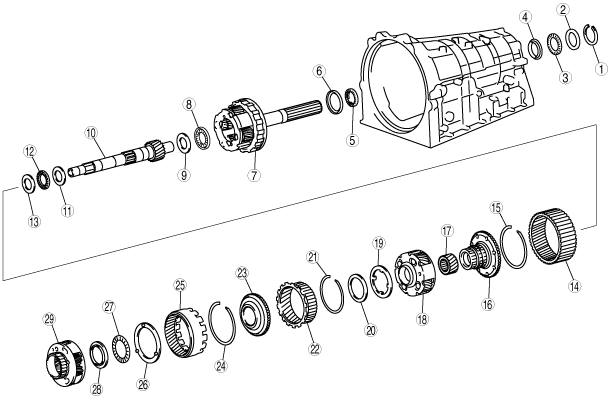

Components
bsj6za00000235
|
|
1
|
Snap ring
|
|
2
|
Bearing race
|
|
3
|
Thrust needle bearing
|
|
4
|
Bearing race
|
|
5
|
Thrust needle bearing
|
|
6
|
Bearing race
|
|
7
|
Rear planetary gear component
|
|
8
|
Thrust needle bearing
|
|
9
|
Bearing race
|
|
10
|
Intermediate shaft
|
|
11
|
Bearing race
|
|
12
|
Needle bearing
|
|
13
|
Bearing race
|
|
14
|
Rear planetary ring gear flange
|
|
15
|
Snap ring
|
|
16
|
Middle planetary ring gear flange
|
|
17
|
Sun gear
|
|
18
|
Middle planetary gear component
|
|
19
|
Bearing race
|
|
20
|
Thrust needle bearing
|
|
21
|
Snap ring
|
|
22
|
Middle planetary ring gear
|
|
23
|
Middle planetary ring gear flange
|
|
24
|
Snap ring
|
|
25
|
Front planetary gear component
|
|
26
|
Thrust washer
|
|
27
|
Thrust needle bearing
|
|
28
|
Bearing race
|
|
29
|
Front planetary gear component
|
Assembly Procedure
1. Install the rear planetary gear flange to the rear planetary ring gear.
bsj6za00000234
|
2. Using a flathead screwdriver, install the snap ring to the rear planetary ring gear.
bsj6za00000233
|
3. Install the front planetary ring gear to the middle planetary ring gear.
bsj6za00000232
|
4. Using a flathead screwdriver, install the snap ring to the middle planetary ring gear.
bsj6za00000231
|
5. Install the middle planetary ring gear flange to the middle planetary ring gear.
bsj6za00000230
|
6. Using a flathead screwdriver, install the snap ring to the middle planetary ring gear.
bsj6za00000236
|
