B2, B4 BRAKE AND F3 ONE-WAY CLUTCH COMPONENT ASSEMBLY
id051300261700

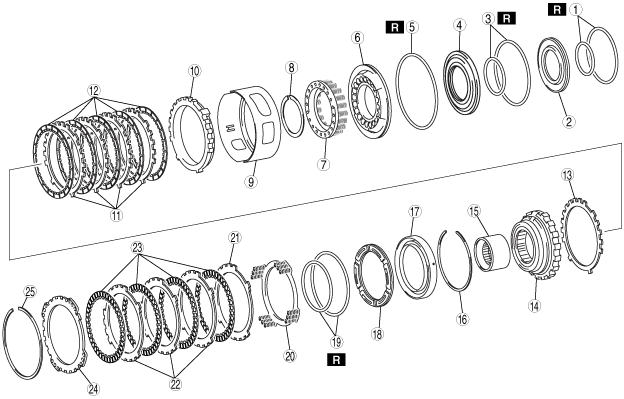

Components
bsj6za00000619
|
|
1
|
O-ring
|
|
2
|
Inner brake piston
|
|
3
|
O-ring
|
|
4
|
Sleeve
|
|
5
|
O-ring
|
|
6
|
B4 brake piston
|
|
7
|
Piston return spring
|
|
8
|
Snap ring
|
|
9
|
Brake tube
|
|
10
|
Driven plate
|
|
11
|
Drive plate
|
|
12
|
Driven plate
|
|
13
|
Retaining plate
|
|
14
|
F3 one-way clutch
|
|
15
|
Inner race
|
|
16
|
Snap ring
|
|
17
|
B2 brake cylinder
|
|
18
|
B2 brake piston
|
|
19
|
O-ring
|
|
20
|
Piston return spring
|
|
21
|
Driven plate
|
|
22
|
Drive plate
|
|
23
|
Driven plate
|
|
24
|
Retaining plate
|
|
25
|
Snap ring
|
Assembly Procedure
1. Apply ATF to the new O-rings.
2. Install the O-rings to the B4 brake piston.
bsj6za00000226
|
3. Apply ATF to the new O-rings.
4. Install the O-rings to the sleeve.
bsj6za00000055
|
5. Apply ATF to the new O-ring.
6. Install the O-rings to the B4 brake piston.
bsj6za00000054
|
7. Apply ATF to the inner race and the F3 one-way clutch component.
8. Install the inner race to the F3 one-way clutch component.
bsj6za00000053
|
9. Apply ATF to the new O-ring.
10. Install the O-ring to the B2 brake piston.
bsj6za00000052
|
11. Apply ATF to the brake cylinder and the B2 brake piston.
12. Install the B2 brake piston to the brake cylinder.
bsj6za00000227
|
