HOUSING COMPONENTS DISASSEMBLY
id051100010100
1. Disassemble in the order shown in the figure.
bmm7zm00000001
|
|
1
|
Dynamic damper
|
|
2
|
Stud bolt
|
|
3
|
Clutch release collar
|
|
4
|
Boot
|
|
5
|
Clutch release fork
|
|
6
|
Front cover
|
|
7
|
Adjustment shim
|
|
8
|
Oil seal (front)
|
|
9
|
Snap ring
|
|
10
|
Transmission case
|
|
11
|
Main drive gear bearing
|
|
12
|
Back-up light switch
|
|
13
|
Neutral switch No.1
|
|
14
|
Neutral switch No.2 (with i-stop)
|
|
15
|
Plug (without i-stop)
|
|
16
|
Oil seal (rear)
|
|
17
|
Control case
|
|
18
|
Roll pin
|
|
19
|
Extension housing
|
Oil Seal (Front) Disassembly Note
1. Remove the oil seal (front) using a tape-wrapped flathead screwdriver.
bmm6jm00000008
|
Transmission Case Disassembly Note
1. Remove the transmission case from the intermediate housing using the SST.
bmm6jm00000009
|
Back-up Light Switch Disassembly Note

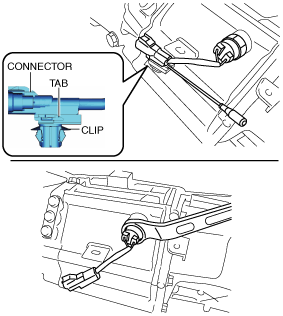

1. Detach the clip and disconnect the back-up light switch connector from the transmission.
2. Detach the clip tab and remove the clip from the back-up light switch connector.
bmm8um00000002
|
3. Remove the back-up light switch.
Oil Seal (Rear) Disassembly Note
1. Press the position of the oil seal shown in the figure with a flathead screwdriver and raise the oil seal.
bmm6jm00000011
|
2. Insert the flathead screwdriver into the gap made in Step 1 and remove the oil seal.
bmm6jm00000012
|
