HOUSING COMPONENTS ASSEMBLY
id051100010200

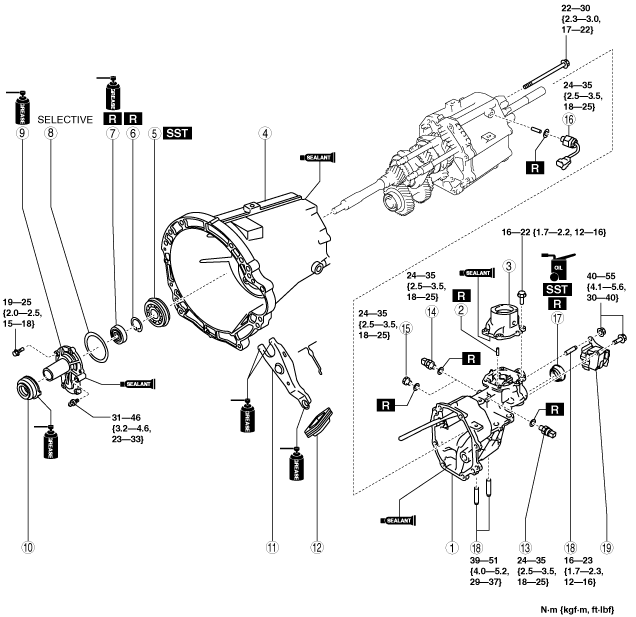

1. Assemble in the order shown in the figure.
bmm7zm00000002
|
|
1
|
Extension housing
|
|
2
|
Roll pin
(See Roll Pin Assembly Note.)
|
|
3
|
Control case
(See Control Case Assembly Note.)
|
|
4
|
Transmission case
|
|
5
|
Main drive gear bearing
|
|
6
|
Snap ring
|
|
7
|
Oil seal (front)
|
|
8
|
Adjustment shim
|
|
9
|
Front cover
(See Front Cover Assembly Note.)
|
|
10
|
Clutch release collar
|
|
11
|
Clutch release fork
|
|
12
|
Boot
|
|
13
|
Neutral switch No.1
|
|
14
|
Neutral switch No.2 (with i-stop)
|
|
15
|
Plug (without i-stop)
|
|
16
|
Back-up light switch
|
|
17
|
Oil seal (rear)
|
|
18
|
Stud bolt
|
|
19
|
Dynamic damper
|
Extension Housing Assembly Note
1. Apply silicone sealant TB1217E to the extension housing as shown in the figure.
bmm6jm00000045
|
2. Assemble the extension housing.
Roll Pin Assembly Note
1. Assemble a new roll pin using a pin punch and a hammer.
bmm8um00000004
|
Control Case Assembly Note
1. Apply silicone sealant TB1217E to the control case as shown in the figure.
bmm6jm00000046
|
2. Assemble the control case.
Transmission Case Assembly Note
1. Apply silicone sealant TB1217E to the transmission case as shown in the figure.
bmm6jm00000047
|
2. Assemble the transmission case.
Main Drive Gear Bearing Assembly Note
1. Assemble the main drive gear bearing using the SSTs and a hammer.
bmm6jm00000048
|
Oil Seal (Front) Assembly Note
1. Assemble the oil seal (front) using the SST and the press.
bmm8um00000005
|
Adjustment Shim Assembly Note
1. Measure dimensions A and B shown in the figure.
bmm8um00000006
|
bmm8um00000007
|
2. Subtract dimension A from dimension B and calculate the bearing end play.
3. Select an adjustment shim so that the bearing end play is within the standard.
Adjustment shims for bearing end play adjustment
|
Thickness (mm {in}) |
|---|
|
0.30 {0.012}
|
|
0.35 {0.014}
|
|
0.40 {0.016}
|
|
0.45 {0.018}
|
|
0.50 {0.020}
|
|
0.55 {0.022}
|
|
0.60 {0.024}
|
|
0.65 {0.026}
|
|
0.70 {0.028}
|
|
0.75 {0.030}
|
|
0.80 {0.032}
|
|
0.85 {0.034}
|
|
0.90 {0.036}
|
|
0.95 {0.038}
|
|
1.00 {0.040}
|
Front Cover Assembly Note
1. Apply lithium grease to the position of the front cover shown in the figure.
bmm8um00000008
|
2. Apply silicone sealant TB1217E to the front cover as shown in the figure.
bmm6jm00000053
|
3. Assemble the front cover.
Oil Seal (Rear) Assembly Note
1. Using the SST and a hammer, assemble the oil seal (rear).
bmm6jm00000054
|
