EXTENSION HOUSING PARTS DISASSEMBLY
id051100011500

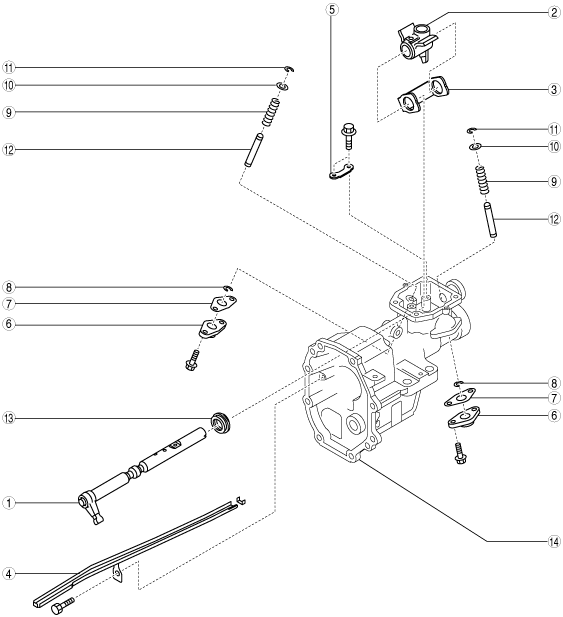

1. Disassemble in the order shown in the figure.
bmm6jm00000041
|
|
1
|
Control rod
(See Control Rod Disassembly Note.)
|
|
2
|
Control rod end
|
|
3
|
Spring
|
|
4
|
Oil guide
|
|
5
|
Guide plate
|
|
6
|
Spring cap
|
|
7
|
Gasket
|
|
8
|
Snap ring
(See Snap Ring Disassembly Note.)
|
|
9
|
Spring
|
|
10
|
Washer
|
|
11
|
Snap ring
|
|
12
|
Spindle
|
|
13
|
Oil seal (control rod)
|
|
14
|
Extension housing
|
Control Rod Disassembly Note
1. While compressing the spring in the direction of the arrow, pull out the control rod.
bmm8um00000039
|
Snap Ring Disassembly Note
1. While pressing the spindle in the direction of the arrow, remove the snap ring.
bmm8um00000040
|
Oil Seal (Control Rod) Disassembly Note
1. Remove the oil seal (control rod) using a tape-wrapped flathead screwdriver.
bmm6jm00000044
|
