ENGINE FRONT COVER [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0110h8000900

Purpose, Function

• The engine front cover covers the front of the engine to prevent engine oil spillage, noise leakage, and foreign material penetration.

Construction

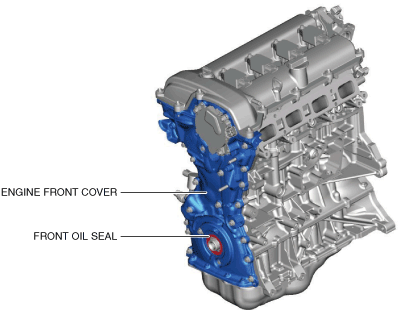

• The engine front cover is located in front of the engine.

amxzzn00001878

• The lightweight engine front cover is made of aluminum alloy with excellent noise absorption.

• The engine front cover has the following parts shown in the figure.

amxuun00001797

*1 :O-ring for engine oil

*2 :O-ring for engine coolant
