•  Mechanical resistance loss has been reduced through structural changes to achieve optimum fuel economy. An oil shower pipe has been adopted as a part of this structural change.

•  The oil shower pipe injects engine oil to lubricate the contact points of the cam and rocker arm. As a result, wear resistance of sliding part is reduced.

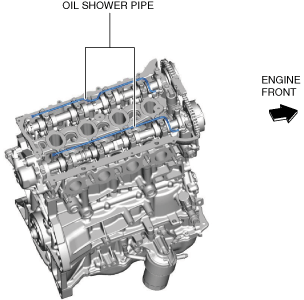

•  The oil shower pipe is located on the camshaft cap.

amxzzn00001899

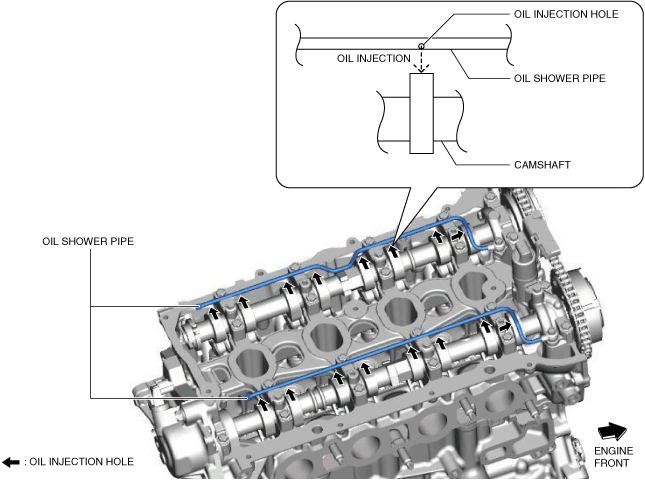

•  The oil shower pipe utilizes the engine oil injection holes at the top of all the cams.

amxzzn00001900

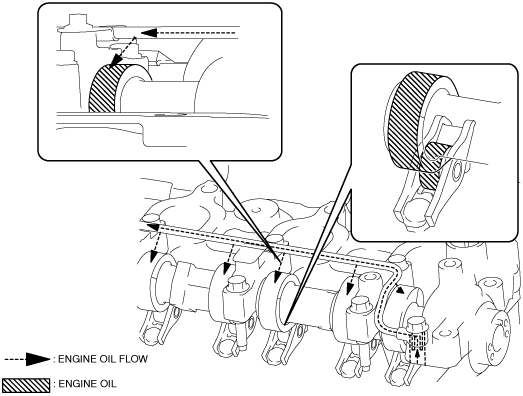

•  The oil shower pipe injects engine oil from the engine oil injection holes using hydraulic pressure.

ac3wzn00000032
