ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0111i0003000

Warning

•  Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.

•  A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.

•  Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front crossmember under cover. (See FRONT CROSSMEMBER UNDER COVER REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

5.  Start the engine and confirm that there is no oil leakage.

•  If there is oil leakage, repair or replace the applicable part.

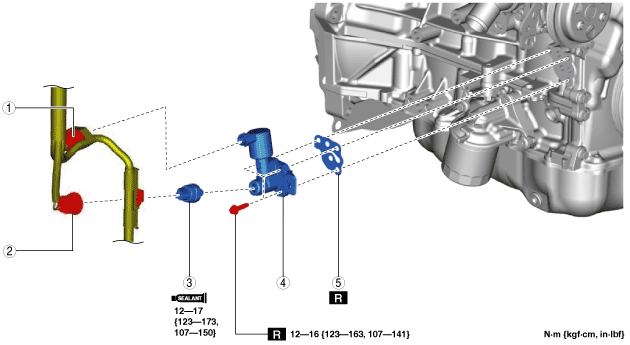

amxuuw00004222

1	Engine oil solenoid valve connector
2	Oil pressure switch connector
3	Oil pressure switch (See Oil Pressure Switch Installation Note.)
4	Engine oil solenoid valve (See Engine Oil Solenoid Valve Removal Note.) (See Engine Oil Solenoid Valve Installation Note.)
5	Gasket

Engine Oil Solenoid Valve Removal Note

1.  Cover the area around the engine oil solenoid valve with a cloth because a small amount of engine oil will leak from the engine oil solenoid valve installation area.

Caution

•  Do not allow any engine oil to contact the adjacent water pump and water pump body gasket. Otherwise, the gasket could swell causing a seal malfunction.

Engine Oil Solenoid Valve Installation Note

1.  Remove sealant around the cylinder block screw holes before installing the engine oil solenoid valve.

2.  After tightening the three bolts shown in the figure, tighten the first tightened bolt to the specified tightening torque again.

amxuuw00004223

Note

•  The tightening order for the three bolts is optional.

Oil Pressure Switch Installation Note

Caution

•  Verify that there is no sealant between 1.7—2.7 mm {0.07—0.10 in} from the end of the oil pressure switch to prevent a possible operation malfunction.

1.  When reusing the oil pressure switch, apply silicone sealant (TB1207B or equivalent) to the threads of the oil pressure switch.

am3uuw00008914

Caution

•  Install the oil pressure switch before the applied sealant starts to harden.

2.  Install the oil pressure switch.
