•  The radiator disperses the engine coolant heat flowing internally by receiving air flow against the vehicle while it is driven or produced by the cooling fan.

•  The air seal cowl guides cool air flow efficiently across the entire surface of the radiator.

•  The radiator is located at the front part in the engine compartment.

•  The air seal cowl is located between the front bumper and radiator.

amxuun00001078

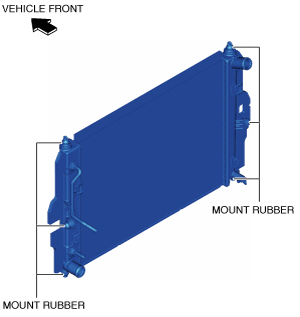

•  Vibration is absorbed via the six supporting mount rubbers attached to the radiator.

amxuun00001079

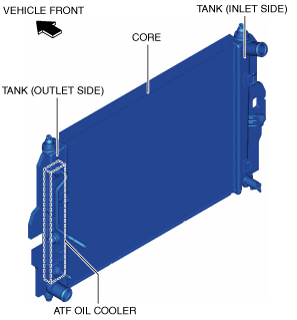

•  A cross-flow type radiator has been adopted.

amxuun00001080

•  Corrugated fins have been adopted to the core fins.

•  A plastic tank material and aluminum core material have been adopted to achieve weight reduction.

•  An ATF oil cooler is built into the tank (outlet side).

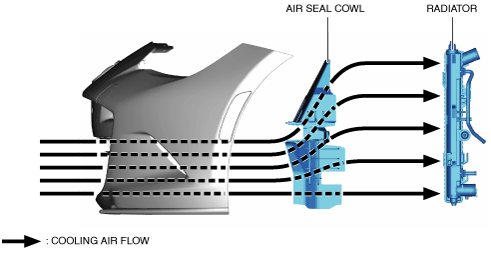

•  The air seal cowl efficiently guides cool air flow from the lower-side bumper grille opening to the entire radiator surface.

amxuun00001081
