ENGINE COOLANT REPLACEMENT [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0112i1800600

Warning
•  Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot. Scalding engine coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system.
•  Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise to the first stop. Step back while the pressure escapes.
•   When you are sure all the pressure is gone, press down on the cap using the cloth, turn it, and remove it.
Caution
•  Use engine coolant at a concentration that meets the environmental conditions in which the vehicle is driven, otherwise engine damage could occur.
•  The engine has aluminum parts and must be protected by an ethylene-glycol-based coolant to prevent corrosion and freezing.
•  Do not use coolants containing Alcohol, Methanol, Borate or Silicate. These coolants could damage the cooling system.
•  Use only soft (demineralized) water in the coolant mixture. Water that contains minerals will cut down on the coolant's effectiveness.
•  Engine coolant damages paint. If engine coolant does get on a painted surface, rinse it off quickly.
Note
•  If the “FL22” mark is shown on or near the cooling system cap, use FL22 type engine coolant.
acxuuw00002061
•  FL22 type engine coolant is shipped as a diluted solution. Use the solution as is when replacing coolant.

Engine coolant capacity (approx. quantity)

Item

Capacity
SKYACTIV-G 1.5
MT
L.H.D.
5.6 L {5.9 US qt, 4.9 Imp qt}
R.H.D.
5.8 L {6.1 US qt, 5.1 Imp qt}
AT
5.6 L {5.9 US qt, 4.9 Imp qt}
SKYACTIV-G 2.0
MT
L.H.D.
6.0 L {6.3 US qt, 5.3 Imp qt}
R.H.D.
6.2 L {6.6 US qt, 5.5 Imp qt}
AT
Saudi Arabia
6.2 L {6.6 US qt, 5.5 Imp qt}
R.H.D.
6.0 L {6.3 US qt, 5.3 Imp qt}
Except above
5.9 L {6.2 US qt, 5.2 Imp qt}

1.  Remove the cooling system cap.

2.  Drain the engine coolant from the coolant reserve tank.

3.  Set aside the air hose and air cleaner cover as a single unit with the air flow sensor connector connected. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

amxuuw00004237

4.  Remove the air cleaner case and resonance chamber No.1 as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

5.  Connect the specified hose (hose inner diameter: 7 mm {0.3 in}) to the engine coolant outlet of the radiator.

amxuuw00004238

Note

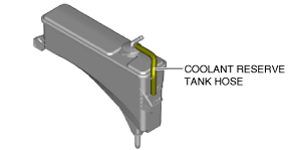

•  If there is no specified hose, the coolant reserve tank hose can be used.
amxuuw00004239

6.  Insert the hose into the service hole of the front under cover.

amxuuw00004240

7.  Loosen the radiator drain plug and drain the engine coolant into a container.

8.  After completely draining the engine coolant, tighten the radiator drain plug.

9.  Disconnect the hose for draining engine coolant.

10.  Install the air cleaner case and resonance chamber No.1 as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

11.  Install the air hose and air cleaner cover as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

12.  Referring to the following chart, select the correct volume percentage of the water and engine coolant.

Antifreeze solution mixture percentage (Except FL22 type engine coolant)

Engine coolant protection

Volume percentage (%)

Gravity at 20 °C {68 °F}

Water

Coolant
Above -16 °C {3 °F}
65
35
1.057
Above -26 °C {-15 °F}
55
45
1.072
Above -40 °C {-40 °F}
45
55
1.086

13.  Refill the engine coolant from the water outlet filler neck until it is close to the top of the water outlet filler neck.

14.  Refill the engine coolant into the coolant reserve tank up to the FULL mark on the tank.

15.  Install the cooling system cap.

16.  Start the engine and warm up the engine by idling.

Caution
•  If the high engine coolant temperature warning light flashes, stop the engine to lower the engine coolant temperature and prevent overheating. Then, verify the malfunctioning part and repair or replace it.

17.  After the engine warms up, perform the following steps. At this time, be careful of the engine coolant temperature to prevent overheating.

Note
•  If the accelerator pedal is depressed continuously for a specified time, the engine speed may decrease to the idle speed. This is due to the fuel cut control operation, which prevents overheating, and it does not indicate a malfunction.
(1)  Run the engine at 2,500 rpm for 5 min.
(2)  Maintain the engine speed at 3,000 rpm for 5 s, and then idle.
(3)  Repeat Steps (1), (2) several times.

18.  Stop the engine and wait until the engine coolant temperature decreases.

19.  Inspect the engine coolant level.

•  If engine coolant level is low, repeat Steps 13 to 17.

20.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
