THERMOSTAT INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0]
id0112i1801300
1. Remove the thermostat. (See THERMOSTAT REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
2. Visually check that the thermostat valve is closed.
3. Place the thermostat in water.
-
Warning
-
• During inspection, the thermostat and water are extremely hot and can cause severe burns. Do not touch the thermostat and water.
4. Heat the water and check the following:
-
• Opening temperature and valve lift
-
― If there is a malfunction, replace the thermostat.
-
Thermostat initial-opening temperature
-
86.5—89.5 °C {188—193 °F}
-
Thermostat full-open temperature
-

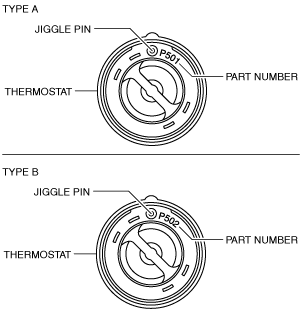

TypeA : 95 °C {203 °F}
TypeB : 100 °C {212 °F}
-
Thermostat full-open lift
-
TypeA : 8.5—11 mm {0.34—0.43 in}
TypeB : 8.5 mm {0.33 in} or more
