ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0113zg801400

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

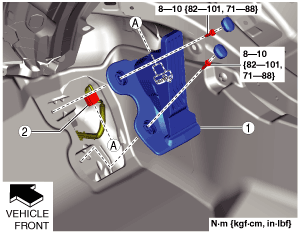

2.  Remove in the order indicated in the table.

amxuuw00005138

1	Accelerator pedal
2	APP sensor connector

3.  Install in the reverse order of removal.
