MAIN SILENCER [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0115zh101000

Purpose, Function

• The main silencer reduces exhaust noise.

Construction

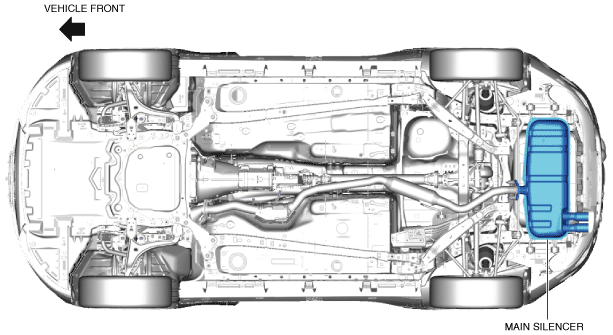

• The main silencer is located at the rear of the vehicle, under the trunk compartment.

amxuun00001348

• The main silencer consists of the filter, stuffing filter, stuffing holder, and set plate.

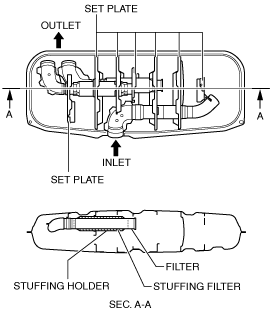

SKYACTIV-G 1.5

amxuun00001349

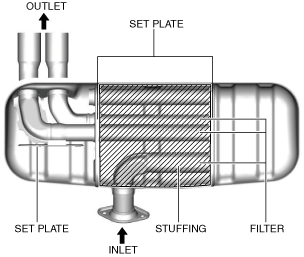

SKYACTIV-G 2.0

amxzzn00001910

• The set plate is used for securing the stuffing filter and stuffing holder, and it is also used as a partition for sound insulation.

• The stuffing holder supports the stuffing filter.

• The stuffing filter becomes a passage for the exhaust gas.

• The exhaust noise is reduced because the gas diffuses in each chamber of the silencer.
