CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0116zj096400

1. Remove in the order indicated in the table.

amxzzw00005758

2. Install in the reverse order of removal.

Charcoal Canister Removal Note

1. Release the lock as shown in the figure.

amxuuw00005252

2. Remove the charcoal canister.

Charcoal Canister Installation Note

1. Install the charcoal canister as shown in the figure.

amxuuw00005253

Charcoal Canister Bracket Installation Note

1. Install the bolt and nut to the charcoal canister bracket in the order of the numbers shown in the figure.

amxzzw00005759

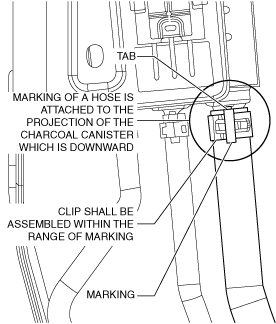

Evaporative Hose No.3 Installation Note

1. Connect the evaporative hose No.3 as shown in the figure.

amxuuw00005254

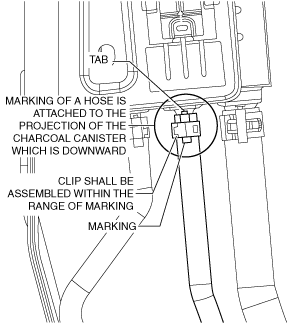

Evaporative Hose No.1 Installation Note

1. Connect the evaporative hose No.1 as shown in the figure.

amxuuw00005255

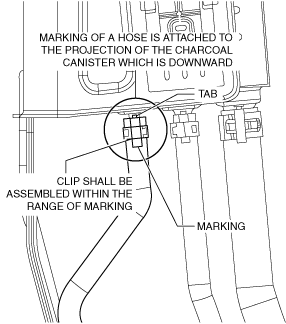

Evaporative Hose No.2 Installation Note

1. Connect the evaporative hose No.2 as shown in the figure.

amxuuw00005256

1	Evaporative hose No.2 (See Evaporative Hose No.2 Installation Note.)
2	Evaporative hose No.1 (See Evaporative Hose No.1 Installation Note.)
3	Evaporative hose No.3 (See Evaporative Hose No.3 Installation Note.)
4	Charcoal canister (See Charcoal Canister Removal Note.) (See Charcoal Canister Installation Note.)
5	Charcoal Canister Bracket (See Charcoal Canister Bracket Installation Note.)
