EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0116zj108800

Outline

• The evaporative emission control system prevents release of evaporative gas into the atmosphere.

• Evaporative gas is introduced into the intake manifold by the intake manifold vacuum, mixed with intake air, and then combusted.

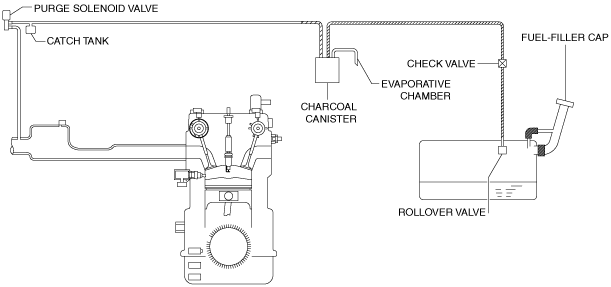

System Diagram

amxuun00001512

Structure

• The evaporative emission control system consists of the following parts:

Part name	Reference
Purge solenoid valve	(See PURGE SOLENOID VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Catch tank	(See CATCH TANK [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Charcoal canister	(See CHARCOAL CANISTER [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Evaporative chamber	(See EVAPORATIVE CHAMBER [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Fuel-filler cap	(See FUEL-FILLER CAP [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Rollover valve	(See ROLLOVER VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
Check valve	(See CHECK VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
