CATCH TANK INSPECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0]


id0116zj804000

1.  Remove the catch tank. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

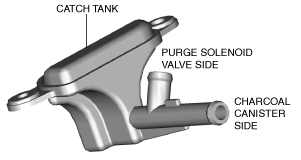

2.  Plug the purge solenoid valve side into the catch tank.

amxuuw00005280

3.  Inspect for air leakage when blowing air using your mouth into the charcoal canister side.

•  If there is air leakage, replace the catch tank. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)
