STARTER DISASSEMBLY/ASSEMBLY [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0119j1104500

Without i-stop Only

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

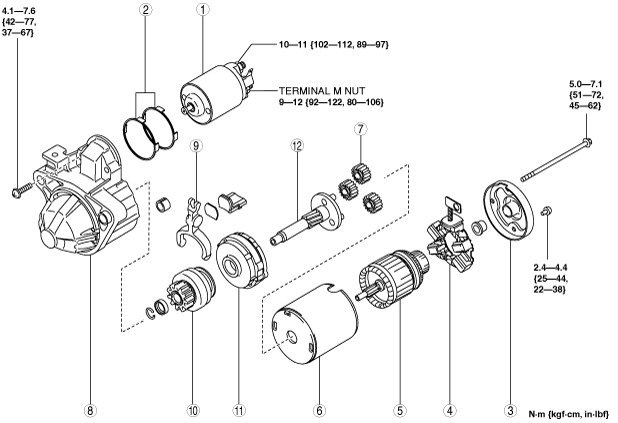

amxuuw00004291

1	Magnetic switch
2	Adjustment washer
3	Rear housing
4	Brush and brush holder
5	Armature
6	Yoke
7	Planetary gear
8	Front cover
9	Lever
10	Drive pinion
11	Internal gear
12	Gear shaft
