CLUTCH PEDAL POSITION (CPP) SWITCH [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0140g8008200


Purpose/Function

•  The CPP switch detects the clutch connection condition (release/depressed).

Construction

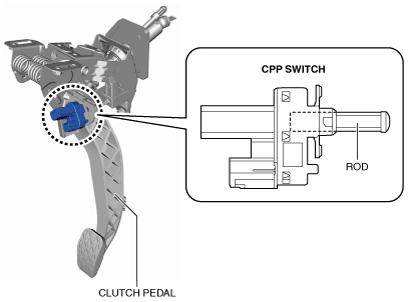

•  The CPP switch is located on the clutch pedal.
amxuun00001443
•  A pushed-in rod has been adopted for the CPP switch.

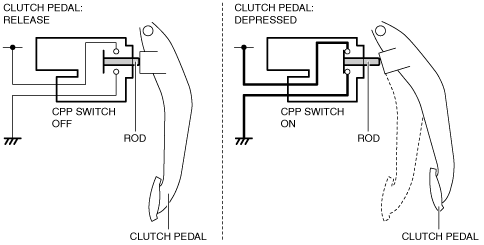

•  The relation of the clutch pedal, rod, and CPP switch is as follows.

Clutch pedal condition

Rod condition

CPP switch condition
Release
Pushed in
OFF
Depressed
Release
ON

amxuun00001444

Operation

1.  When the clutch pedal is depressed, the CPP switch rod is released.

2.  When the rod is released, the CPP switch turns on (1).

3.  When the CPP switch is on, the PCM detects (2) a CPP switch ON signal.

amxuun00001445

Fail-safe

•  Not applicable
