ENGINE CONTROL SYSTEM [SKYACTIV-G 1.5, SKYACTIV-G 2.0]

id0140g8139900

Outline

• L-jetronic^*1 and D-jetronic^*2 types have been adopted for the intake air amount measurement to realize stable combustion free from abnormal combustion.

― MAF sensor adopted

― MAP sensor adopted

― IAT sensor No.1 and No.2 adopted

• To improve the fuel economy and emission performance, an electric variable valve timing control has been adopted for the intake side, and a hydraulic variable valve timing control for the exhaust side. The electric type is adopted for the intake side to achieve expanded valve overlap and delayed closing of the intake valve (enlarged intake valve opening angle).

Intake side: Electric variable valve timing control

― Intake CMP sensor adopted

― Electric variable valve timing motor/driver adopted

― Electric variable valve timing relay adopted

Exhaust side: Hydraulic variable valve timing control

― Exhaust CMP sensor adopted

• Engine hydraulic pressure switching control has been adopted to reduce the oil pump operation load on the engine.

― Engine oil solenoid valve adopted

• To decrease generator operation loss, i-ELOOP has been adopted which generates electricity from energy occurring when the vehicle decelerates. (With i-ELOOP)

― DC-DC converter (i-ELOOP) adopted

• Generator output control has been adopted to improve fuel economy/idling stability.

― A current sensor adopted (With i-stop system)

• To improve engine reliability, an ion sensor has been adopted which detects pre-ignition.

• LIN communication has been adopted to the current sensor to realize wiring harness simplification. (With i-stop system)

• i-stop control has been adopted to improve fuel efficiency, and reduce exhaust gas and idling noise. (With i-stop system)

*1 :The intake air amount is directly detected by measuring the amount of intake air flow using the MAF sensor.

*2 :The intake air amount is detected indirectly by measuring the intake manifold pressure (pressure between downstream of the throttle valve and intake manifold) using the MAP sensor.

Structural View

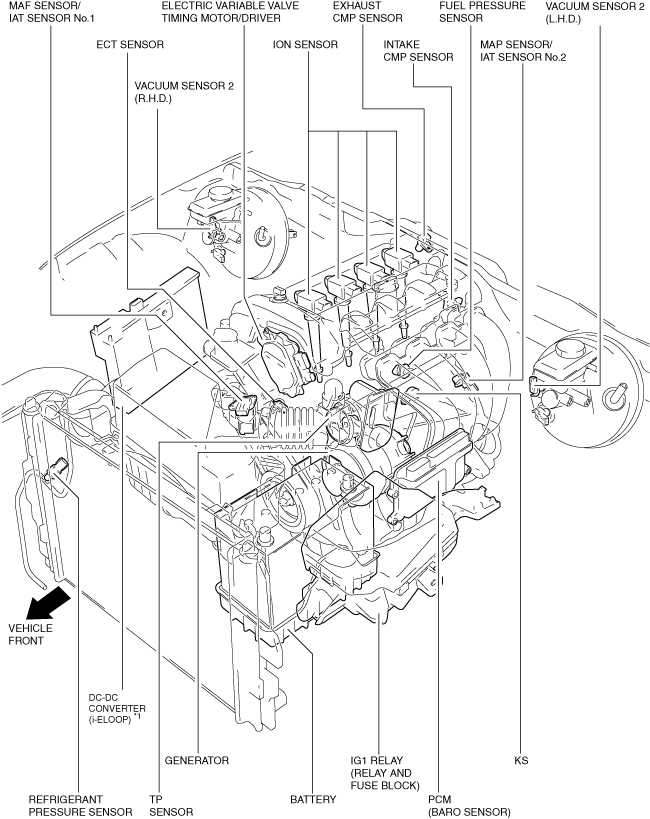

Input device

amxzzn00001026

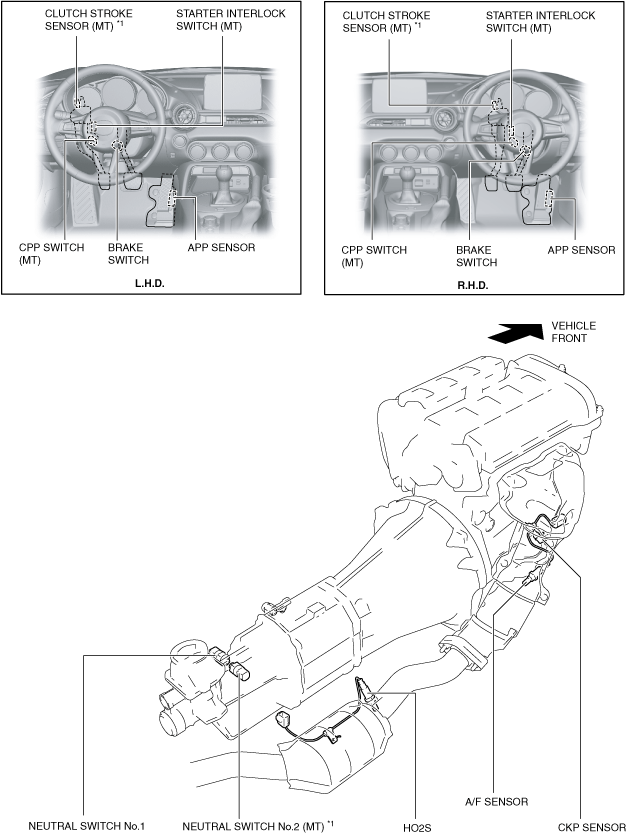

*1 :With i-ELOOP

amxzzn00001043

*1 :With i-stop system

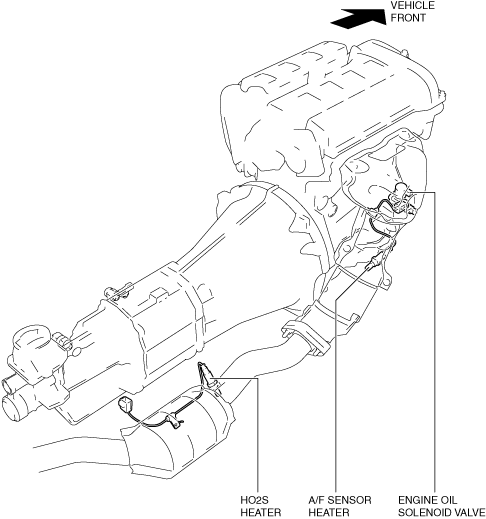

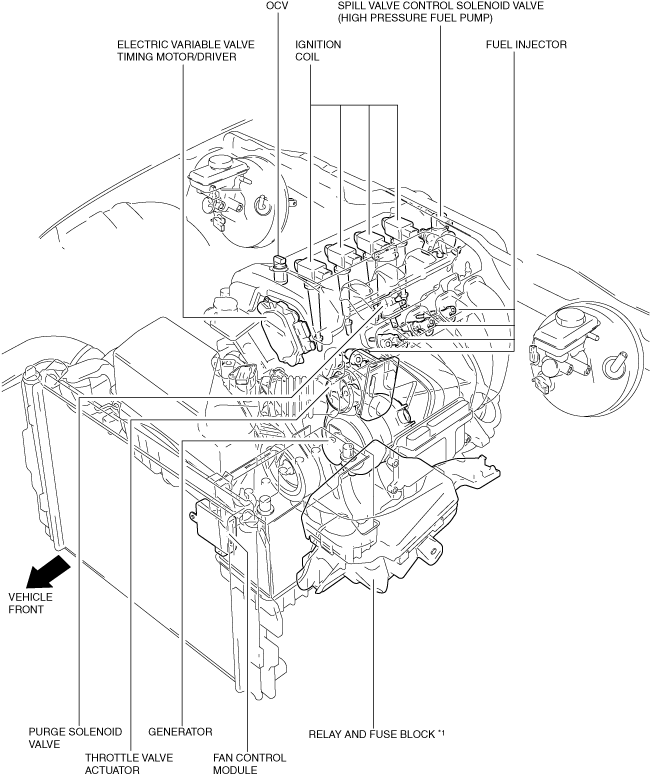

Output device

amxzzn00001044

*1 :Main relay, sub relay, fuel pump relay, A/C relay, cooling fan relay, starter relay, electric variable valve timing relay

amxzzn00001045

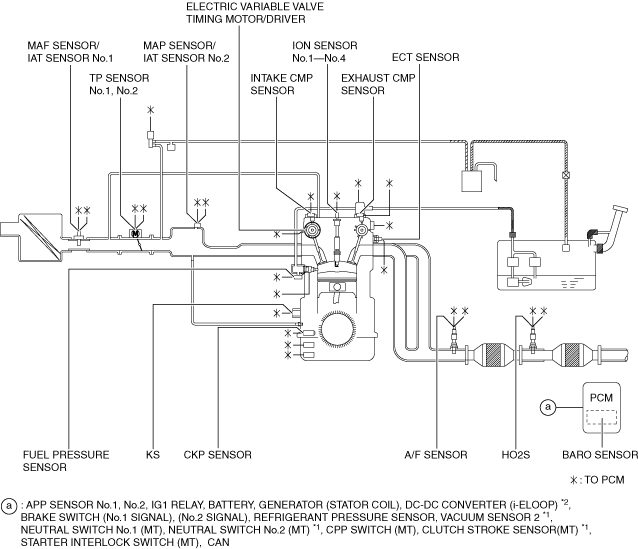

System Diagram

Input device

amxzzn00001046

*1 :With i-stop system

*2 :With i-ELOOP

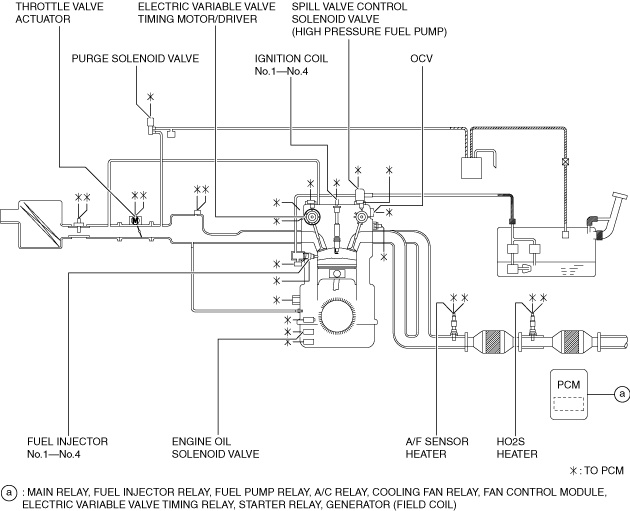

Output device

amxzzn00001047

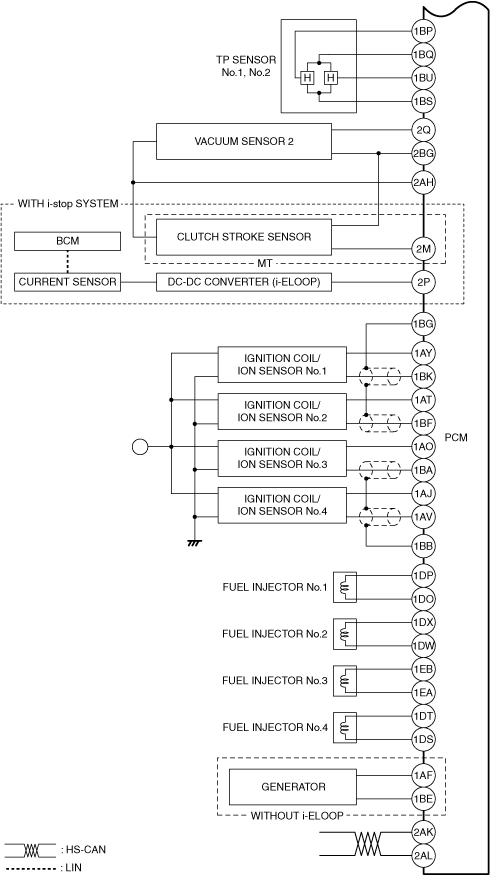

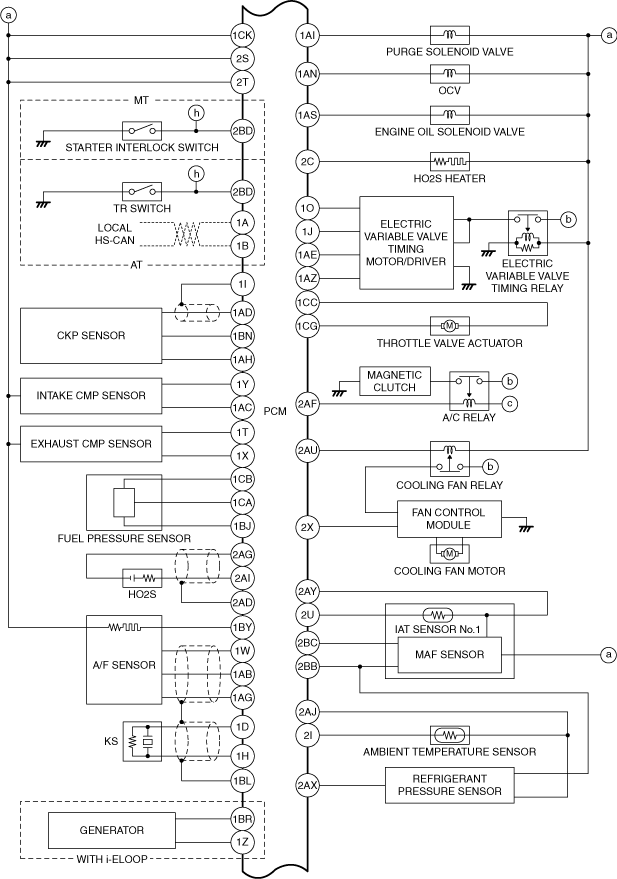

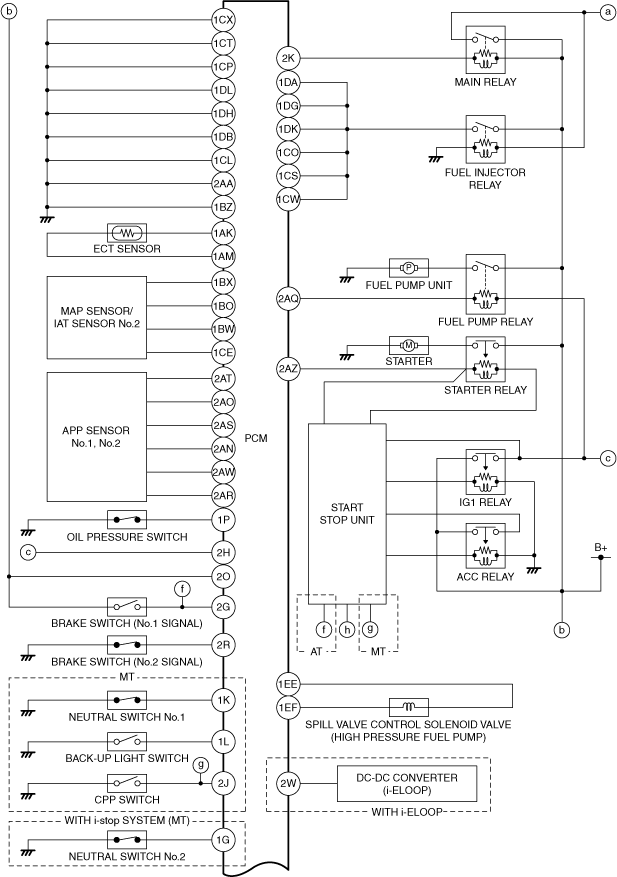

System Wiring Diagram

amxuuw00003759

amxzzw00003551

amxzzw00003552

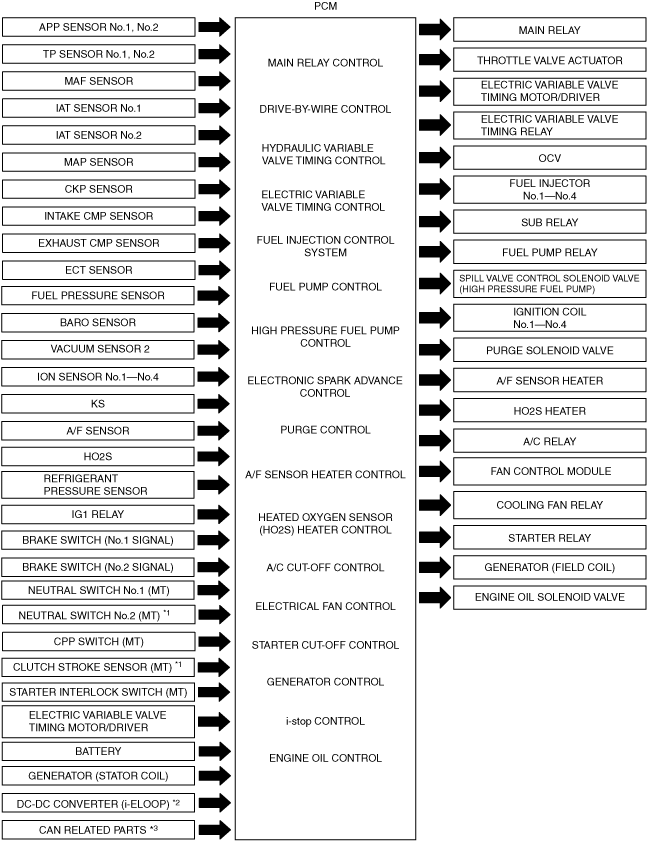

Block Diagram

amxzzn00001976

*1 :With i-stop system

*2 :With i-ELOOP

*3 :DSC HU/CM, TCM (AT), EPS control module, instrument cluster, BCM, start stop unit

Relation Chart

• Each control system and their related input and output parts are as follows.

Input device

×: Applicable

Item
APP sensor No.1, No.2		×	×		×			×	×			×	×		×^*2	×
TP sensor No.1, No.2		×			×							×				×
MAF sensor		×	×	×	×		×	×	×				×			×	×
IAT sensor No.1		×		×	×			×	×				×			×
IAT sensor No.2		×		×	×			×								×
MAP sensor		×		×	×			×	×							×	×
CKP sensor		×	×	×	×	×	×	×	×			×	×	×	×	×	×
Intake CMP sensor		×		×	×			×								×
Exhaust CMP sensor		×	×		×		×	×								×
ECT sensor		×	×	×	×		×	×	×			×	×	×		×	×
Fuel pressure sensor		×			×	×	×									×
BARO sensor		×		×	×				×				×			×
Vacuum sensor 2																×
Ion sensor No.1—No.4				×	×											×
KS								×
A/F sensor					×				×
HO2S					×
Refrigerant pressure sensor												×	×
IG1 relay	×		×		×	×		×		×	×		×	×		×
Brake switch (No.1 signal)		×														×
Brake switch (No.2 signal)		×
CPP switch (MT)		×			×			×				×				×
Starter interlock switch (MT)														×
Clutch stroke sensor (MT) ^*1																×
Neutral switch No.1 (MT)		×			×			×				×				×
Neutral switch No.2 (MT) ^*1																×
Electric variable valve timing motor/driver				×												×
Battery			×			×	×	×	×						×	×
Generator (Stator coil)		×
DC-DC converter (i-ELOOP) ^*2															×
CAN related parts^*3		×			×			×				×	×	×	×	×

*1 :With i-stop system

*2 :With i-ELOOP

*3 :DSC HU/CM, TCM (AT), EPS control module, instrument cluster, BCM, start stop unit

Output device

×: Applicable

Item
Main relay	×
Throttle valve actuator		×														×
Electric variable valve timing motor/driver				×												×
Electric variable valve timing relay				×												×
OCV			×
Fuel injector No.1—No.4					×											×
Sub relay																×
Fuel pump relay						×
Spill valve control solenoid valve (High pressure fuel pump)							×
Ignition coil No.1—No.4								×								×
Purge solenoid valve									×
A/F sensor heater										×
HO2S heater											×
A/C relay												×
Cooling fan relay													×
Fan control module													×
Starter relay														×		×
Generator (Field coil)															×	×
Engine oil solenoid valve																	×
