INSTANT MOBILITY SYSTEM
id021200629800
Outline
• An instant mobility system is equipped for temporary repair of a puncture.
• Compared to equipping a spare tire, the vehicle weight is reduced and the fuel economy is improved.

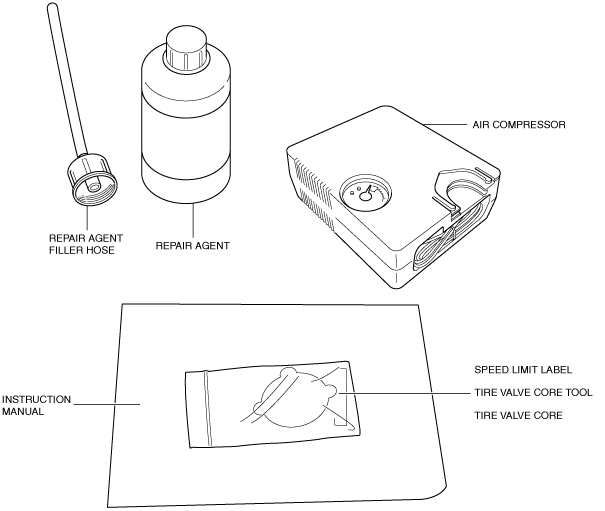

• The instant mobility system is located in trunk compartment and includes the following:
-
― Repair agent
― Repair agent filler hose
― Air compressor
― Tire valve core
― Tire valve core tool
― Instruction manual
― Speed limit label
• Because the instant mobility system requires less space compared to a spare tire, utility of the trunk compartment can be enhanced.
Operation
• If the repair agent is injected into a tire using the air compressor, liquid rubber, one of the ingredients of the repair agent, soak into the punctured area and solidify, allowing temporal driving.
• Use the accessory socket (DC12V) for the power source of the air compressor.
-
Note
-
• The expiration date of the repair agent is printed on the repair agent bottle. Do not use the repair agent if it has passed the expiration date.
• When disposing of the repair agent, commission an industrial waste disposal contractor.
