DRIVELINE/AXLE

id030000100400


Features

•  Double angular ball bearings which integrated the wheel hub and the wheel bearing have been adopted for the front and rear axles.
•  An aluminum front knuckle and rear knuckle have been adopted, and unsprung weight has been reduced.
•  An aluminum differential carrier and differential rear cover have been adopted, reducing rear differential weight.
•  A super-LSD has been adopted (limited slip differential (LSD) vehicles).
•  The following parts have been adopted to reduce vibration and noise:
―  Bell-shaped constant velocity joint has been adopted for the wheel-side joint of the rear drive shaft.
―  A tripod-shaped constant velocity joint has been adopted for the differential-side joint of the rear drive shaft.

Specifications

Item

Specification

M66M-D

SJ6A-EL
Front axle
Bearing type
Angular ball bearing
Rear axle
Bearing type
Angular ball bearing
Rear drive shaft
Rear drive shaft joint type
Wheel side
Bell joint
Differential side
Tripod joint
Rear drive shaft diameter
(mm {in})
SKYACTIV-G 1.5: 31.5 {1.24}
SKYACTIV-G 2.0: 34 {1.34}
SKYACTIV-G 1.5: 26 {1.0}
SKYACTIV-G 2.0: 28 {1.1}
Rear differential
Reduction gear
Hypoid gear
Differential gear
Straight bevel gear
Ring gear size
(mm {in})
SKYACTIV-G 1.5: 169 {6.65}
SKYACTIV-G 2.0: 181 {7.13}
SKYACTIV-G 1.5: 170 {6.69}
SKYACTIV-G 2.0: 182 {7.17}
Final gear ratio
2.866
SKYACTIV-G 1.5: 4.100
SKYACTIV-G 2.0: 3.583
Gears:
Number of teeth
Drive pinion
15
SKYACTIV-G 1.5: 10
SKYACTIV-G 2.0: 12
Ring gear
43
SKYACTIV-G 1.5: 41
SKYACTIV-G 2.0: 43
Differential oil
Type
Mazda Long Life Hypoid Gear Oil SG1
Oil capacity
(approx. quantity)
(L {US qt, lmp qt})
0.6 {0.6, 0.5}

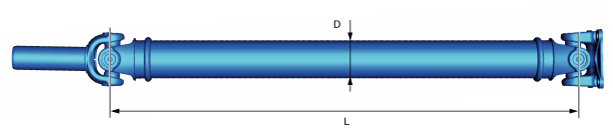

Propeller shaft
Length (L)
(mm {in})
692 {27.2}
729 {28.7}
Outer diameter (D)
(mm {in})
57 {2.2}
