REAR DRIVE SHAFT INSPECTION

id031300144900

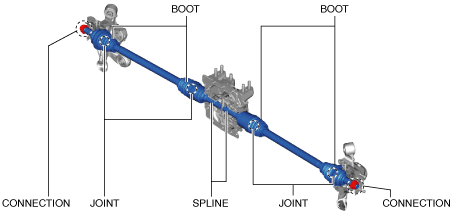

1.  Inspect the connections for any looseness.

amxuuw00004752

•  If there is any malfunction, tighten or replace the applicable part. (See REAR DRIVE SHAFT REMOVAL/INSTALLATION.)

2.  Inspect the boot for damage and cracks.

•  If there is any malfunction, replace the applicable part. (See REAR DRIVE SHAFT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 1.5, SKYACTIV-G 2.0 (SJ6A-EL)].) (See REAR DRIVE SHAFT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0 (M66M-D)].)

3.  Move the spline and joint up and down, left and right by hand and verify that there is no excessive play.

•  If there is any malfunction, replace the applicable part. (See REAR DRIVE SHAFT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 1.5, SKYACTIV-G 2.0 (SJ6A-EL)].) (See REAR DRIVE SHAFT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0 (M66M-D)].)
