FRONT BRAKE DISC REMOVAL/INSTALLATION [WITH 4-POT OPPOSED PISTON CALIPER]
id0411000001v8
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

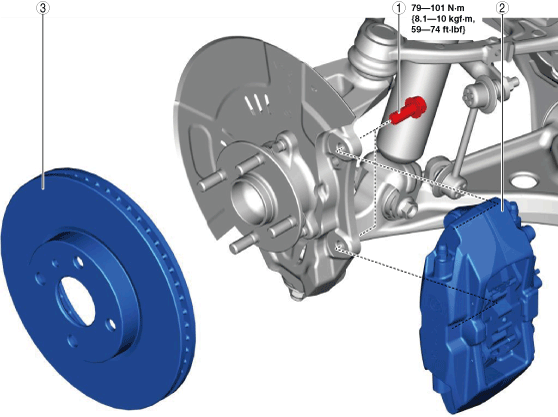

amxuuw00006085
|
|
1
|
Bolt
|
|
2
|
Front brake caliper component
|
|
3
|
Disc plate
|
Front Brake Caliper Component Removal Note
1. Remove the front brake hose bracket from the front upper arm. (See FRONT BRAKE HOSE REMOVAL/INSTALLATION [WITH 4-POT OPPOSED PISTON CALIPER].)
2. Remove the front brake caliper component and suspend it in a place out of the way using a cable.
amxzzw00005047
|
Front Brake Caliper Component Installation Note
1. Push the piston in using the commercially available disc brake expand tool.
amxuuw00006087
|
2. Install the bleeder screws with them pointed to the upper side of the vehicle.
amxuuw00006088
|
