FRONT BRAKE DISC PAD REMOVAL/INSTALLATION [WITH 4-POT OPPOSED PISTON CALIPER]

id0411000002v8

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  After installation, depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

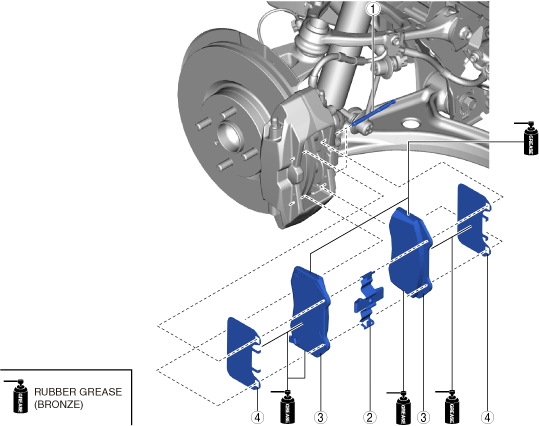

amxuuw00006093

1	Pin (See Pin Removal Note.)
2	Clip
3	Disc pad (See Disc Pad Installation Note.)
4	Shim

Pin Removal Note

1.  Remove the pins in the direction of the arrow shown in the figure using a pin punch and hammer.

amxzzw00005049

Disc Pad Installation Note

1.  Clean the exposed area of the piston.

2.  Push the piston in using the commercially available disc brake expand tool.

amxuuw00006095

3.  Install the disc pads to the caliper.
