FRONT BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER]
id0411000005w4

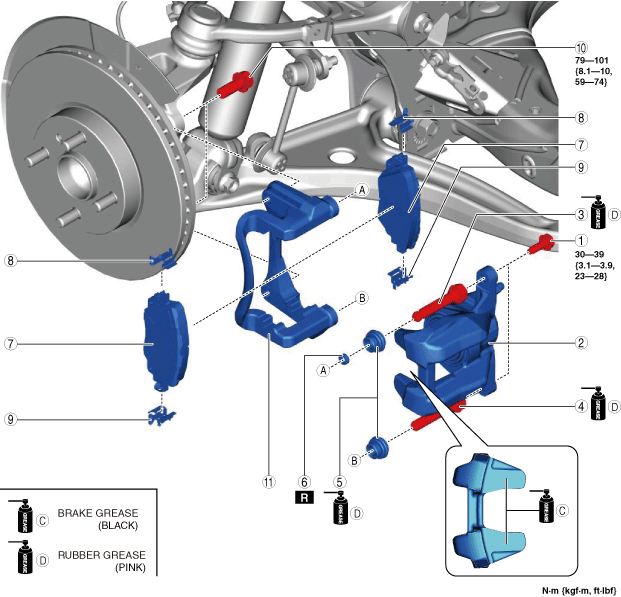

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.
amxuuw00006125
|
|
1
|
Bolt
|
|
2
|
Front brake caliper
|
|
3
|
Slide pin (main)
|
|
4
|
Slide pin (sub)
|
|
5
|
Dust boot
|
|
6
|
Bush
|
|
7
|
Disc pad component
|
|
8
|
Guide plate (upper)
|
|
9
|
Guide plate (lower)
|
|
10
|
Bolt
|
|
11
|
Mounting support
|
Front Brake Caliper Removal Note
1. Remove the front brake hose bracket from the front upper arm. (See FRONT BRAKE HOSE REMOVAL/INSTALLATION [WITH SINGLE PISTON FLOATING CALIPER].)
2. Remove the front brake caliper and suspend it in a place out of the way using a cable.
amxzzw00005051
|
Guide Plate Installation Note
1. Apply shock absorbing material to the position (between the guide plate and the mounting support) shown in the figure.
amxuuw00006127
|
2. Peel off the backing of the double-sided adhesive tape from the shock absorbing material.
3. Install the guide plate to the mounting support.
4. Apply shock absorbing material to all guide plates using the above procedure.
