REAR BRAKE CALIPER REMOVAL/INSTALLATION

id041100001100

1.  Loosen the adjusting nut. (See PARKING BRAKE LEVER REMOVAL/INSTALLATION.)

2.  Disconnect the brake hose from the caliper. (See REAR BRAKE HOSE REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

5.  After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING.)

6.  After installation, pump the brake pedal a few times and inspect the following:

―  The disc pad projection is securely assembled to the piston groove.

―  Parking brake lever stroke (See PARKING BRAKE LEVER INSPECTION.)

―  Brake drag

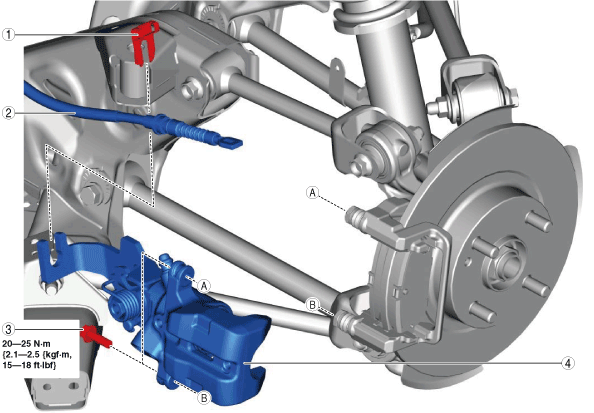

amxuuw00006134

1	Clip (See Clip Installation Note.)
2	Rear parking brake cable
3	Bolt
4	Rear brake caliper (See Rear Brake Caliper Installation Note.)

Clip Installation Note

1.  Install the clip to the position shown in the figure.

amxuuw00006135

Rear Brake Caliper Installation Note

1.  Clean the exposed area of the piston.

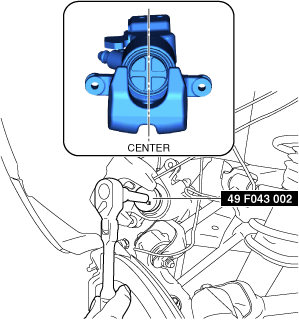

2.  Rotate the piston clockwise slowly using the SST and push the piston completely until the piston grooves are in the position shown in the figure.

amxuuw00006136

3.  Install the caliper.
