REAR BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION
id041100001300
1. Disconnect the brake hose from the caliper. (See REAR BRAKE HOSE REMOVAL/INSTALLATION.)

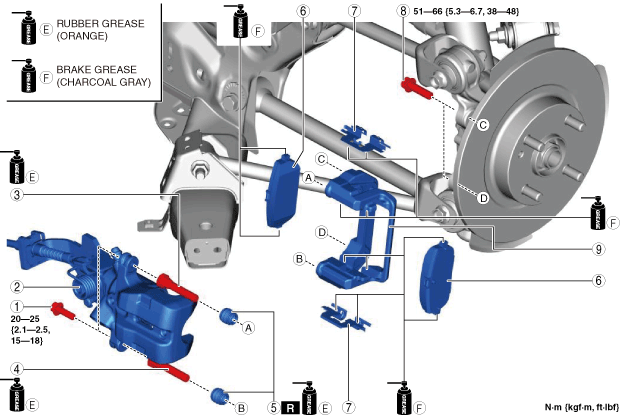

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING.)
5. Pump the brake pedal a few times and inspect the following:
amxuuw00006137
|
|
1
|
Bolt
|
|
2
|
Rear brake caliper
|
|
3
|
Slide pin (main)
|
|
4
|
Slide pin (sub)
|
|
5
|
Dust boot
|
|
6
|
Disc pad component
|
|
7
|
Guide plate
|
|
8
|
Bolt
|
|
9
|
Mounting support
|
Rear Brake Caliper Removal Note

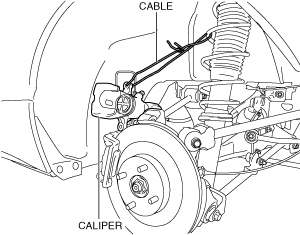

1. Remove the caliper and hang it in a place out of the way using a cable.
